LHHT-XFN – Sun Hydraulics Normally open, bi-directional, modulating element
Part number: LHHTXFN · LHHT-XFN · LHHT XFN
Normally open, bi-directional, modulating element. Cavity T-33A, capacity 60 gpm (240 L/min.). Genuine Sun Hydraulics cartridge — MultiFlow is an authorized distributor.
LHHT-XFN overview
LHHTXFN (LHHT-XFN, LHHT XFN) is a Sun Hydraulics Sun Hydraulics Normally open, bi-directional, modulating element, rated 60 gpm (240 L/min.) and installed in cavity T-33A. MultiFlow supplies genuine Sun Hydraulics cartridges in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| LHHTXFN/AP | Stainless Steel, PassivatedStainless Steel, Passivated |
|---|---|
| LHHTXFN | Standard Material/CoatingStandard Material/Coating |
Specifications
| Cavity | T-33A |
|---|---|
| Series | 3 |
| Capacity | 60 gpm (240 L/min.) |
| Maximum Operating Pressure | 5000 psi (350 bar) |
| Valve Hex Size | 1 1/4 in. (31,8 mm) |
| Valve Installation Torque | 150 - 160 lbf ft (203 - 217 Nm) |
| Model Weight | 1.60 lb (0,70 kg) |
| Seal kit - Cartridge | Viton: 990033006 |
How to read LHHTXFN
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so LHHTXFN, LHHT-XFN, LHHT XFN are the same part.
| Model | LHHT — Sun Hydraulics Normally open, bi-directional, modulating element |
|---|---|
| Control | X — Not Adjustable |
| Differential Pressure | F — 100 psi (7 bar) |
| Seal Material | N — Buna-N |
| Material / coating | Add /AP (stainless steel, passivated) or /LH (mild steel, zinc-nickel) to the end; no suffix is the standard finish. |
Control options
- X — Not Adjustable
Differential Pressure options
- D — 50 psi (3,5 bar)
- E — 75 psi (5 bar)
- F — 100 psi (7 bar)
Seal Material options
- N — Buna-N
- V — Viton
- E — EPDM
Material/coating options
- /AP — Stainless Steel, Passivated
- — Standard Material/Coating
Manifold & standard assemblies
Sun manifolds for cavity T-33A (26)
- PM4 Sun Hydraulics Ninety degree Line mount manifoldLHHTXFN-PM4 — request assembly
- PM5 Sun Hydraulics Ninety degree Line mount manifoldLHHTXFN-PM5 — request assembly
- PMD Sun Hydraulics Ninety degree Line mount manifoldLHHTXFN-PMD — request assembly
- PME Sun Hydraulics Ninety degree Line mount manifoldLHHTXFN-PME — request assembly
- PMF Sun Hydraulics Ninety degree Line mount manifoldLHHTXFN-PMF — request assembly
- PML Sun Hydraulics Ninety degree Line mount manifoldLHHTXFN-PML — request assembly
- PMM Sun Hydraulics Ninety degree Line mount manifoldLHHTXFN-PMM — request assembly
- PMN Sun Hydraulics Ninety degree Line mount manifoldLHHTXFN-PMN — request assembly
- PMP Sun Hydraulics Ninety degree Line mount manifoldLHHTXFN-PMP — request assembly
- PMQ Sun Hydraulics Ninety degree Line mount manifoldLHHTXFN-PMQ — request assembly
- PMW Sun Hydraulics Ninety degree Line mount manifoldLHHTXFN-PMW — request assembly
- PMX Sun Hydraulics Ninety degree Line mount manifoldLHHTXFN-PMX — request assembly
Technical features
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- All ports will accept 5000 psi (350 bar).
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

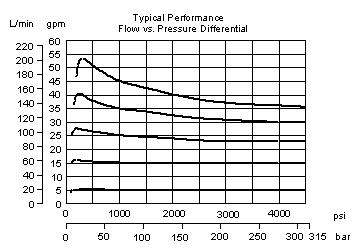

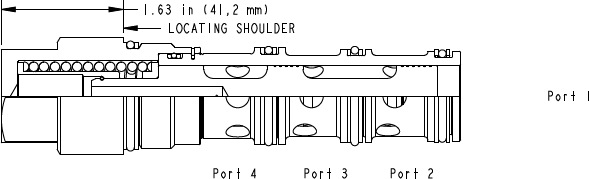

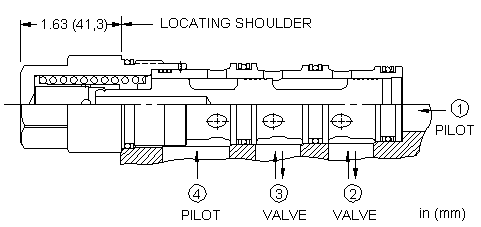

Drawings, symbol & performance curves
Downloads
Datasheet
Technical reference sheets
CAD files
Frequently asked questions
Is LHHTXFN the same as LHHT-XFN?
Yes. Sun Hydraulics writes this part number as LHHTXFN. It is the model LHHT followed by the configuration code; hyphens, slashes and spaces are only dividers, so LHHTXFN, LHHT-XFN, LHHT XFN all refer to the same product.
Do you supply LHHTXFN in the UAE, GCC and India?
Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including LHHTXFN, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.
Can I get the datasheet and CAD files?
Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.
How big is a drop of hydraulic oil?
There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
