Part number: LDR · LDR/10 · LDR/11 · LDR/1A · LDR/1B · LDR/M · LDR/S · LDR/S3 · LDR/S4 · LDR/S5 · LDR/T · LDR/T3 · LDR/T4 · LDR/T5

Brand Sun HydraulicsType Line mountCavity T-18AU

Through port 1 with gauge port Line mount manifold, cavity T-18AU, 1 1/2 in. Code 61 ports. Genuine Sun Hydraulics — MultiFlow is an authorized distributor.

Clear
SKU: LDR Category: Brand:

LDR overview

LDR (LDR/10, LDR/11, LDR/1A, LDR/1B) is a Sun Hydraulics Sun Hydraulics Through port 1 with gauge port Line mount manifold and installed in cavity T-18AU. MultiFlow supplies genuine Sun Hydraulics manifolds in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.

Ordering codes

Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.

LDR Aluminium, Buna-N seals6061-T651 Aluminum, Buna-N
LDR/10 Black anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II
LDR/11 Clear anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
LDR/1A Aluminium, Metric, black anodized, Buna-N seals6061-T651 Aluminum, Metric, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II
LDR/1B Aluminium, Metric, clear anodized, Buna-N seals6061-T651 Aluminum, Metric, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
LDR/M Aluminium, Metric, Buna-N seals6061-T651 Aluminum, Metric, Buna-N
LDR/S Ductile iron, dewatering-oil finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Dewatering Oil
LDR/S3 Clear zinc plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer
LDR/S4 Ductile iron, black oxide finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Chem. Black
LDR/S5 Electroless nickel plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Electroless Nickel
LDR/T Ductile iron, Metric, dewatering-oil finish, Buna-N seals65-45-12 Ductile Iron, Metric, Buna-N, Dewatering Oil
LDR/T3 Ductile iron, Metric, clear zinc plated, Buna-N seals65-45-12 Ductile Iron, Metric, Buna-N, Trivalent Clear Zinc with Top Sealer
LDR/T4 Ductile iron, Metric, black oxide finish, Buna-N seals65-45-12 Ductile Iron, Metric, Buna-N, Chem. Black
LDR/T5 Ductile iron, Metric, electroless nickel plated, Buna-N seals65-45-12 Ductile Iron, Metric, Buna-N, Electroless Nickel

Specifications

Body TypeLine mount
Interface1.50 SAE C61
Body FeaturesThrough port 1 with gauge port
Mounting Hole ThreadM10x1.5 - 6H (metric models) (M10x1.5 - 6H (metric models))
Mounting Hole Depth.62 in. (15,7 mm)
Mounting Hole Quantity2
Open Cavities1
CavityT-18AU
Port Size1 1/2 in. Code 61

Flange mounting hole data: Inch: 1/2-13 UNC x 1.06 (26,9 mm) DP, Metric: M12 x 1.75-6H x 1.06 (26,9 mm) DP Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.

How to read LDR

Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so LDR, LDR/10, LDR/11, LDR/1A, LDR/1B, LDR/M, LDR/S, LDR/S3, LDR/S4, LDR/S5, LDR/T, LDR/T3, LDR/T4, LDR/T5 are the same part.

ModelLDR — Sun Hydraulics Through port 1 with gauge port Line mount manifold
ModifierAdd the modifier after the model, e.g. LDR/10 = black anodized aluminium. No modifier = standard material.
Modifier options
  • — 6061-T651 Aluminum, Buna-N
  • /10 — 6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II
  • /11 — 6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
  • /1A — 6061-T651 Aluminum, Metric, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II
  • /1B — 6061-T651 Aluminum, Metric, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
  • /M — 6061-T651 Aluminum, Metric, Buna-N
  • /S — 65-45-12 Ductile Iron, Buna-N, Dewatering Oil
  • /S3 — 65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer
  • /S4 — 65-45-12 Ductile Iron, Buna-N, Chem. Black
  • /S5 — 65-45-12 Ductile Iron, Buna-N, Electroless Nickel
  • /T — 65-45-12 Ductile Iron, Metric, Buna-N, Dewatering Oil
  • /T3 — 65-45-12 Ductile Iron, Metric, Buna-N, Trivalent Clear Zinc with Top Sealer
  • /T4 — 65-45-12 Ductile Iron, Metric, Buna-N, Chem. Black
  • /T5 — 65-45-12 Ductile Iron, Metric, Buna-N, Electroless Nickel

Cartridges that fit this manifold

Sun cartridges for cavity T-18AU (2)

Ports

Modifiers Ports LDR, /10, /11, /S, /S3 Port 1: 1 1/2" Code 61; Port 2: 1 1/2" Code 61; Gage Port: 1/4" NPTF; LDR/1A, /1B, /M, /T, /T3 Port 1: 1 1/2" Code 61; Port 2: 1 1/2" Code 61; Gage Port: 1/4" BSPP;

Technical features

  • All cartridges utilizing the T-18A cavity can be installed in this T-18AU manifold.

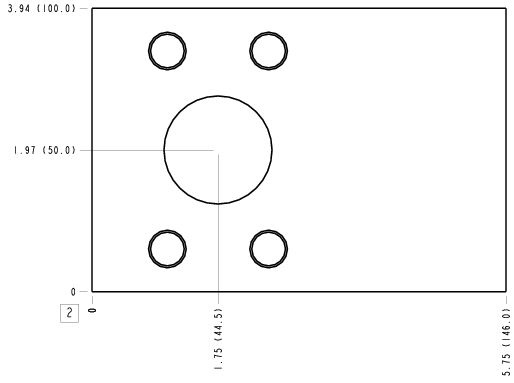

Drawings, symbol & performance curves

LDR Sun Hydraulics Through port 1 with gauge port Line mount manifold drawing
LDR Sun Hydraulics Through port 1 with gauge port Line mount manifold drawing
LDR Sun Hydraulics Through port 1 with gauge port Line mount manifold drawing
LDR Sun Hydraulics Through port 1 with gauge port Line mount manifold drawing
LDR Sun Hydraulics Through port 1 with gauge port Line mount manifold drawing
LDR Sun Hydraulics Through port 1 with gauge port Line mount manifold drawing
LDR Sun Hydraulics Through port 1 with gauge port Line mount manifold drawing
LDR Sun Hydraulics Through port 1 with gauge port Line mount manifold drawing
LDR Sun Hydraulics Through port 1 with gauge port Line mount manifold drawing
LDR Sun Hydraulics Through port 1 with gauge port Line mount manifold drawing
LDR Sun Hydraulics Through port 1 with gauge port Line mount manifold drawing
LDR Sun Hydraulics Through port 1 with gauge port Line mount manifold drawing
LDR Sun Hydraulics Through port 1 with gauge port Line mount manifold drawing
LDR Sun Hydraulics Through port 1 with gauge port Line mount manifold drawing
LDR Sun Hydraulics Through port 1 with gauge port Line mount manifold drawing
LDR Sun Hydraulics Through port 1 with gauge port Line mount manifold drawing
LDR Sun Hydraulics Through port 1 with gauge port Line mount manifold drawing
LDR Sun Hydraulics Through port 1 with gauge port Line mount manifold drawing
LDR Sun Hydraulics Through port 1 with gauge port Line mount manifold drawing
LDR Sun Hydraulics Through port 1 with gauge port Line mount manifold drawing

Downloads

CAD files (from Sun Hydraulics)

Frequently asked questions

Is LDR the same as LDR/10?

Yes. Sun Hydraulics writes this part number as LDR. It is the model LDR followed by the configuration code; hyphens, slashes and spaces are only dividers, so LDR, LDR/10, LDR/11, LDR/1A, LDR/1B, LDR/M, LDR/S, LDR/S3, LDR/S4, LDR/S5, LDR/T, LDR/T3, LDR/T4, LDR/T5 all refer to the same product.

Do you supply LDR in the UAE, GCC and India?

Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including LDR, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.

Can I get the datasheet and CAD files?

Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.

Manufacturer reference: https://www.sunhydraulics.com/model/LDR
