KKR – Sun Hydraulics Ninety degree with gauge port Line mount manifold, aluminium, Buna-N seals
Part number: KKR · KKR/10 · KKR/11 · KKR/1A · KKR/1B · KKR/M · KKR/S · KKR/S3 · KKR/S4 · KKR/S5 · KKR/T · KKR/T3 · KKR/T4 · KKR/T5
Ninety degree with gauge port Line mount manifold, cavity T-19AU, 1 1/2 in. Code 61 ports. Genuine Sun Hydraulics — MultiFlow is an authorized distributor.
KKR overview
KKR (KKR/10, KKR/11, KKR/1A, KKR/1B) is a Sun Hydraulics Sun Hydraulics Ninety degree with gauge port Line mount manifold and installed in cavity T-19AU. MultiFlow supplies genuine Sun Hydraulics manifolds in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| KKR | Aluminium, Buna-N seals6061-T651 Aluminum, Buna-N |
|---|---|
| KKR/10 | Black anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II |
| KKR/11 | Clear anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I |
| KKR/1A | Aluminium, Metric, black anodized, Buna-N seals6061-T651 Aluminum, Metric, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II |
| KKR/1B | Aluminium, Metric, clear anodized, Buna-N seals6061-T651 Aluminum, Metric, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I |
| KKR/M | Aluminium, Metric, Buna-N seals6061-T651 Aluminum, Metric, Buna-N |
| KKR/S | Ductile iron, dewatering-oil finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Dewatering Oil |
| KKR/S3 | Clear zinc plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer |
| KKR/S4 | Ductile iron, black oxide finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Chem. Black |
| KKR/S5 | Electroless nickel plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Electroless Nickel |
| KKR/T | Ductile iron, Metric, dewatering-oil finish, Buna-N seals65-45-12 Ductile Iron, Metric, Buna-N, Dewatering Oil |
| KKR/T3 | Ductile iron, Metric, clear zinc plated, Buna-N seals65-45-12 Ductile Iron, Metric, Buna-N, Trivalent Clear Zinc with Top Sealer |
| KKR/T4 | Ductile iron, Metric, black oxide finish, Buna-N seals65-45-12 Ductile Iron, Metric, Buna-N, Chem. Black |
| KKR/T5 | Ductile iron, Metric, electroless nickel plated, Buna-N seals65-45-12 Ductile Iron, Metric, Buna-N, Electroless Nickel |
Specifications
| Body Type | Line mount |
|---|---|
| Interface | 1.50 SAE C61 |
| Body Features | Ninety degree with gauge port |
| Mounting Hole Thread | M10x1.5 - 6H (metric models) (M10x1.5 - 6H (metric models)) |
| Mounting Hole Depth | .62 in. (15,7 mm) |
| Mounting Hole Quantity | 2 |
| Open Cavities | 1 |
| Cavity | T-19AU |
| Port Size | 1 1/2 in. Code 61 |
Flange mounting hole data: Inch: 1/2-13UNC x 1.06 (26,9 mm) DP, Metric: M14 x 2.0-6H x 1.06 (26,9 mm) DP Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
How to read KKR
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so KKR, KKR/10, KKR/11, KKR/1A, KKR/1B, KKR/M, KKR/S, KKR/S3, KKR/S4, KKR/S5, KKR/T, KKR/T3, KKR/T4, KKR/T5 are the same part.
| Model | KKR — Sun Hydraulics Ninety degree with gauge port Line mount manifold |
|---|---|
| Modifier | Add the modifier after the model, e.g. KKR/10 = black anodized aluminium. No modifier = standard material. |
Modifier options
- — 6061-T651 Aluminum, Buna-N
- /10 — 6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II
- /11 — 6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
- /1A — 6061-T651 Aluminum, Metric, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II
- /1B — 6061-T651 Aluminum, Metric, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
- /M — 6061-T651 Aluminum, Metric, Buna-N
- /S — 65-45-12 Ductile Iron, Buna-N, Dewatering Oil
- /S3 — 65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer
- /S4 — 65-45-12 Ductile Iron, Buna-N, Chem. Black
- /S5 — 65-45-12 Ductile Iron, Buna-N, Electroless Nickel
- /T — 65-45-12 Ductile Iron, Metric, Buna-N, Dewatering Oil
- /T3 — 65-45-12 Ductile Iron, Metric, Buna-N, Trivalent Clear Zinc with Top Sealer
- /T4 — 65-45-12 Ductile Iron, Metric, Buna-N, Chem. Black
- /T5 — 65-45-12 Ductile Iron, Metric, Buna-N, Electroless Nickel
Cartridges that fit this manifold
Sun cartridges for cavity T-19AU (11)
- COKAXAN Sun Hydraulics Pilot-to-close check valveCOKAXAN-KKR — request assembly
- LOKAXDN Sun Hydraulics Vent-to-open, spring-biased closed, unbalanced poppet logic element with pilot source from port 1LOKAXDN-KKR — request assembly
- LOKA8DN Sun Hydraulics Vent-to-open, spring-biased closed, unbalanced poppet logic element with pilot source from port 1 and integral T-8A control cavityLOKA8DN-KKR — request assembly
- LOKBXDN Sun Hydraulics Vent-to-open, spring-biased closed, unbalanced poppet logic element with pilot source from port 2LOKBXDN-KKR — request assembly
- LOKB8DN Sun Hydraulics Vent-to-open, spring-biased closed, unbalanced poppet logic element with pilot source from port 2 and integral T-8A control cavityLOKB8DN-KKR — request assembly
- LOKCXDN Sun Hydraulics Pilot-to-close, spring-biased closed, unbalanced poppet logic elementLOKCXDN-KKR — request assembly
- LOKCZDN Sun Hydraulics Pilot-to-close, spring-biased closed, unbalanced poppet logic element with position switchLOKCZDN-KKR — request assembly
- LOKDXDN Sun Hydraulics Vent-to-open, spring-biased closed, unbalanced poppet logic element with pilot source from port 1 or 2LOKDXDN-KKR — request assembly
- LOKD8DN Sun Hydraulics Vent-to-open, spring-biased closed, unbalanced poppet logic element with pilot source from port 1 or 2 and integral T-8A control cavityLOKD8DN-KKR — request assembly
- LOKOXDN Sun Hydraulics Pilot-to-close, spring-biased open, unbalanced poppet logic elementLOKOXDN-KKR — request assembly
- LOKOZDN Sun Hydraulics Pilot-to-close, spring-biased open, unbalanced poppet logic element with position switchLOKOZDN-KKR — request assembly
Ports
Modifiers Ports KKR, /10, /11, /S, /S3 Ports 1 & 2: 1 1/2" Code 61; Port 3: SAE 6; Gage Port: 1/4" NPTF; KKR/1A, /1B, /M, /T, /T3 Ports 1 & 2: 1 1/2" Code 61; Port 3: 1/4" BSPP; Gage Port: 1/4" BSPP;
Technical features
- All cartridges utilizing the T-19A cavity can be installed in this T-19AU manifold.

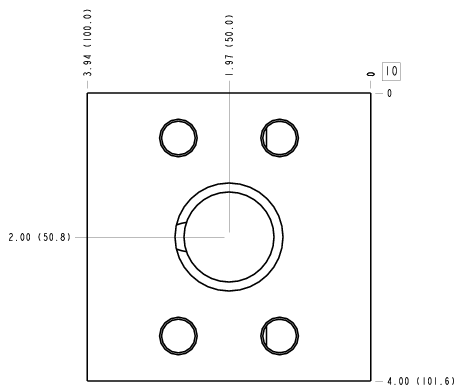

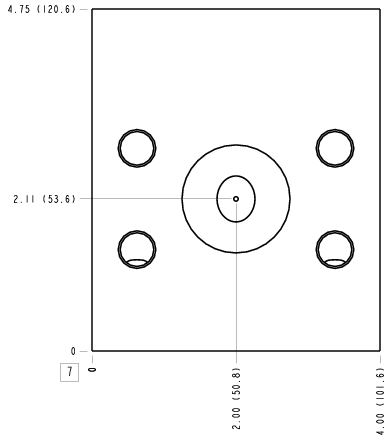

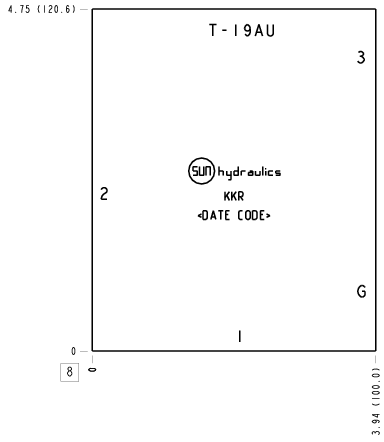

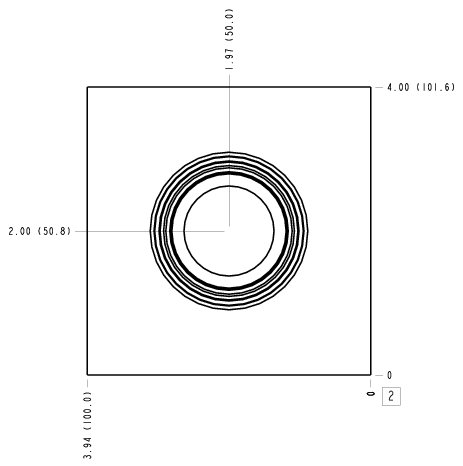

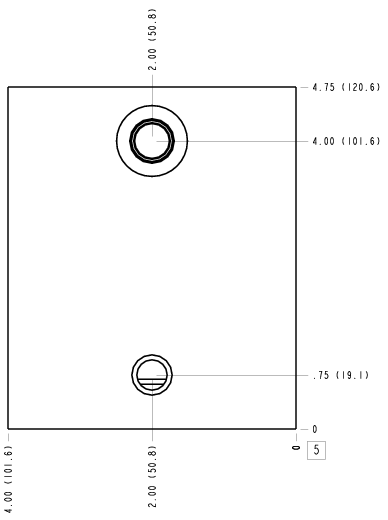

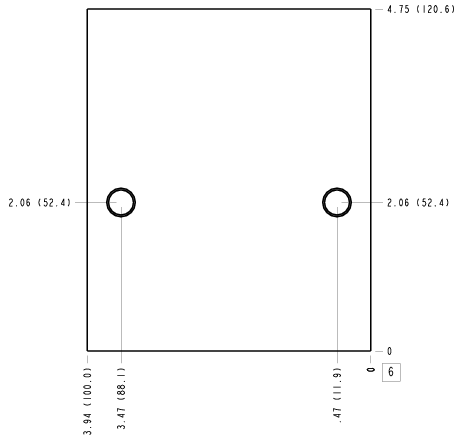

Drawings, symbol & performance curves
Downloads
Datasheet
CAD files (from Sun Hydraulics)
Frequently asked questions
Is KKR the same as KKR/10?
Yes. Sun Hydraulics writes this part number as KKR. It is the model KKR followed by the configuration code; hyphens, slashes and spaces are only dividers, so KKR, KKR/10, KKR/11, KKR/1A, KKR/1B, KKR/M, KKR/S, KKR/S3, KKR/S4, KKR/S5, KKR/T, KKR/T3, KKR/T4, KKR/T5 all refer to the same product.
Do you supply KKR in the UAE, GCC and India?
Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including KKR, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.
Can I get the datasheet and CAD files?
Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.
Manufacturer reference: https://www.sunhydraulics.com/model/KKR
