K4E – Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifold

K4E Sun Hydraulics Ninety degree with reverse flow check - reducing Line mount manifold drawing
K4E Sun Hydraulics Ninety degree with reverse flow check - reducing Line mount manifold drawing
Roll over image to zoom in
Click to open expanded view

Part number: K4E · K4E/10 · K4E/11 · K4E/15 · K4E/16 · K4E/V · K4E/S · K4E/S3 · K4E/S4 · K4E/S5 · K4E/Y · K4E/Y3 · K4E/Y4 · K4E/Y5

Brand Sun HydraulicsType Line mountCavity T-19A

Ninety degree with reverse flow check – reducing Line mount manifold, cavity T-19A, 1″ NPTF ports. Genuine Sun Hydraulics — MultiFlow is an authorized distributor.

Clear
SKU: K4E Category: Brand:

K4E overview

K4E (K4E/10, K4E/11, K4E/15, K4E/16) is a Sun Hydraulics Sun Hydraulics Ninety degree with reverse flow check - reducing Line mount manifold and installed in cavity T-19A. MultiFlow supplies genuine Sun Hydraulics manifolds in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.

Ordering codes

Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.

K4E Aluminium, Buna-N seals6061-T651 Aluminum, Buna-N
K4E/10 Black anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II
K4E/11 Clear anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
K4E/15 Black anodized aluminium, Viton seals6061-T651 Aluminum, Viton, Black Anodize - Per MIL SPEC 8625F Type II, Class II
K4E/16 Clear anodized aluminium, Viton seals6061-T651 Aluminum, Viton, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
K4E/V Aluminium, Viton seals6061-T651 Aluminum, Viton
K4E/S Ductile iron, dewatering-oil finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Dewatering Oil
K4E/S3 Clear zinc plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer
K4E/S4 Ductile iron, black oxide finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Chem. Black
K4E/S5 Electroless nickel plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Electroless Nickel
K4E/Y Ductile iron, dewatering-oil finish, Viton seals65-45-12 Ductile Iron, Viton, Dewatering Oil
K4E/Y3 Clear zinc plated ductile iron, Viton seals65-45-12 Ductile Iron, Viton, Trivalent Clear Zinc with Top Sealer
K4E/Y4 Ductile iron, black oxide finish, Viton seals65-45-12 Ductile Iron, Viton, Chem. Black
K4E/Y5 Electroless nickel plated ductile iron, Viton seals65-45-12 Ductile Iron, Viton, Electroless Nickel

Specifications

Body TypeLine mount
InterfaceNone
Body FeaturesNinety degree with reverse flow check - reducing
Mounting Hole Diameter.41 in. (10,4 mm)
Mounting Hole DepthThrough
Mounting Hole Quantity2
Open Cavities1
CavityT-19A
Port Size1" NPTF

Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.

How to read K4E

Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so K4E, K4E/10, K4E/11, K4E/15, K4E/16, K4E/V, K4E/S, K4E/S3, K4E/S4, K4E/S5, K4E/Y, K4E/Y3, K4E/Y4, K4E/Y5 are the same part.

ModelK4E — Sun Hydraulics Ninety degree with reverse flow check - reducing Line mount manifold
ModifierAdd the modifier after the model, e.g. K4E/10 = black anodized aluminium. No modifier = standard material.
Modifier options
  • — 6061-T651 Aluminum, Buna-N
  • /10 — 6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II
  • /11 — 6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
  • /15 — 6061-T651 Aluminum, Viton, Black Anodize - Per MIL SPEC 8625F Type II, Class II
  • /16 — 6061-T651 Aluminum, Viton, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
  • /V — 6061-T651 Aluminum, Viton
  • /S — 65-45-12 Ductile Iron, Buna-N, Dewatering Oil
  • /S3 — 65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer
  • /S4 — 65-45-12 Ductile Iron, Buna-N, Chem. Black
  • /S5 — 65-45-12 Ductile Iron, Buna-N, Electroless Nickel
  • /Y — 65-45-12 Ductile Iron, Viton, Dewatering Oil
  • /Y3 — 65-45-12 Ductile Iron, Viton, Trivalent Clear Zinc with Top Sealer
  • /Y4 — 65-45-12 Ductile Iron, Viton, Chem. Black
  • /Y5 — 65-45-12 Ductile Iron, Viton, Electroless Nickel

Cartridges that fit this manifold

Sun cartridges for cavity T-19A (77)

View all 77 →

Ports

Modifiers Ports K4E, /10, /11, /15, /16, /V Ports 1 & 2: 1" NPTF; Port 3: 3/4" NPTF; Gage Port: 1/4" NPTF;

Drawings, symbol & performance curves

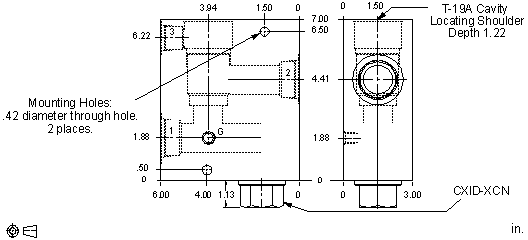

K4E Sun Hydraulics Ninety degree with reverse flow check - reducing Line mount manifold drawing
K4E Sun Hydraulics Ninety degree with reverse flow check - reducing Line mount manifold drawing

Frequently asked questions

Is K4E the same as K4E/10?

Yes. Sun Hydraulics writes this part number as K4E. It is the model K4E followed by the configuration code; hyphens, slashes and spaces are only dividers, so K4E, K4E/10, K4E/11, K4E/15, K4E/16, K4E/V, K4E/S, K4E/S3, K4E/S4, K4E/S5, K4E/Y, K4E/Y3, K4E/Y4, K4E/Y5 all refer to the same product.

Do you supply K4E in the UAE, GCC and India?

Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including K4E, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.

Can I get the datasheet and CAD files?

Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.
