HEX – Sun Hydraulics Ninety degree with high capacity port 3 and gauge port Line mount manifold
Part number: HEX · HEX/10 · HEX/11 · HEX/S · HEX/S3 · HEX/S4 · HEX/S5
Ninety degree with high capacity port 3 and gauge port Line mount manifold, cavity T-17A, 1″ BSPP ports. Genuine Sun Hydraulics — MultiFlow is an authorized distributor.
HEX overview
HEX (HEX/10, HEX/11, HEX/S, HEX/S3) is a Sun Hydraulics Sun Hydraulics Ninety degree with high capacity port 3 and gauge port Line mount manifold and installed in cavity T-17A. MultiFlow supplies genuine Sun Hydraulics manifolds in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| HEX | Aluminium, Buna-N seals6061-T651 Aluminum, Buna-N |
|---|---|
| HEX/10 | Black anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II |
| HEX/11 | Clear anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I |
| HEX/S | Ductile iron, dewatering-oil finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Dewatering Oil |
| HEX/S3 | Clear zinc plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer |
| HEX/S4 | Ductile iron, black oxide finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Chem. Black |
| HEX/S5 | Electroless nickel plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Electroless Nickel |
Specifications
| Body Type | Line mount |
|---|---|
| Interface | None |
| Body Features | Ninety degree with high capacity port 3 and gauge port |
| Mounting Hole Diameter | .42 in. (10,7 mm) |
| Mounting Hole Depth | Through |
| Mounting Hole Quantity | 2 |
| Open Cavities | 1 |
| Cavity | T-17A |
| Port Size | 1" BSPP |
Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
How to read HEX
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so HEX, HEX/10, HEX/11, HEX/S, HEX/S3, HEX/S4, HEX/S5 are the same part.
| Model | HEX — Sun Hydraulics Ninety degree with high capacity port 3 and gauge port Line mount manifold |
|---|---|
| Modifier | Add the modifier after the model, e.g. HEX/10 = black anodized aluminium. No modifier = standard material. |
Modifier options
- — 6061-T651 Aluminum, Buna-N
- /10 — 6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II
- /11 — 6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
- /S — 65-45-12 Ductile Iron, Buna-N, Dewatering Oil
- /S3 — 65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer
- /S4 — 65-45-12 Ductile Iron, Buna-N, Chem. Black
- /S5 — 65-45-12 Ductile Iron, Buna-N, Electroless Nickel
Cartridges that fit this manifold
Sun cartridges for cavity T-17A (87)
- CAGALHN Sun Hydraulics 3:1 pilot ratio, vented counterbalance valve – atmospherically referencedCAGALHN-HEX — request assembly
- CAGGLGN Sun Hydraulics 5:1 pilot ratio, vented counterbalance valve – atmospherically referencedCAGGLGN-HEX — request assembly
- CAGKLHN Sun Hydraulics 1:1 pilot ratio, vented counterbalance valve – atmospherically referencedCAGKLHN-HEX — request assembly
- CAGLLGN Sun Hydraulics 2:1 pilot ratio, vented counterbalance valve – atmospherically referencedCAGLLGN-HEX — request assembly
- CBFALHN Sun Hydraulics 3:1 pilot ratio, restrictive counterbalance valveCBFALHN-HEX — request assembly
- CBFBLHN Sun Hydraulics 1.5:1 pilot ratio, semi-restrictive counterbalance valveCBFBLHN-HEX — request assembly
- CBFCLHN Sun Hydraulics 3:1 pilot ratio, semi-restrictive counterbalance valveCBFCLHN-HEX — request assembly
- CBFDLJN Sun Hydraulics 4.5:1 pilot ratio, semi-restrictive counterbalance valveCBFDLJN-HEX — request assembly
- CBFGLJN Sun Hydraulics 4.5:1 pilot ratio, restrictive counterbalance valveCBFGLJN-HEX — request assembly
- CBFLLJN Sun Hydraulics 2.3:1 pilot ratio, semi-restrictive counterbalance valveCBFLLJN-HEX — request assembly
- CBGALHN Sun Hydraulics 3:1 pilot ratio, standard capacity counterbalance valveCBGALHN-HEX — request assembly
- CBGBLHN Sun Hydraulics 1.5:1 pilot ratio, standard capacity counterbalance valveCBGBLHN-HEX — request assembly
Ports
Modifiers Ports HEX, /10, /11 Ports 1 & 2: 1" BSPP; Port 3: 3/4" BSPP; Gage Port: 1/4" BSPP;

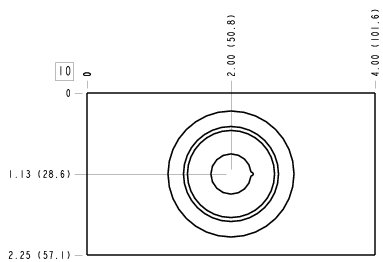

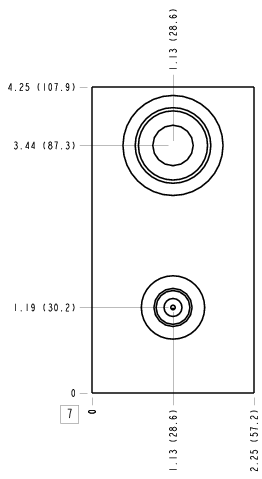

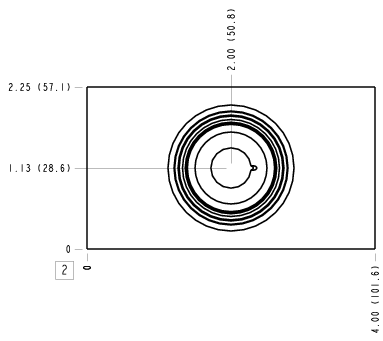

Drawings, symbol & performance curves
Downloads
Datasheet
CAD files (from Sun Hydraulics)
Frequently asked questions
Is HEX the same as HEX/10?
Yes. Sun Hydraulics writes this part number as HEX. It is the model HEX followed by the configuration code; hyphens, slashes and spaces are only dividers, so HEX, HEX/10, HEX/11, HEX/S, HEX/S3, HEX/S4, HEX/S5 all refer to the same product.
Do you supply HEX in the UAE, GCC and India?
Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including HEX, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.
Can I get the datasheet and CAD files?
Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.
Manufacturer reference: https://www.sunhydraulics.com/model/HEX
