FTEA-XCN – Sun Hydraulics 2-way, pilot-shifted, dual path, proportional throttle
Part number: FTEAXCN · FTEA-XCN · FTEA XCN
2-way, pilot-shifted, dual path, proportional throttle. Cavity T-53AD, capacity 25 gpm (95 L/min.). Genuine Sun Hydraulics cartridge — MultiFlow is an authorized distributor.
FTEA-XCN overview
FTEAXCN (FTEA-XCN, FTEA XCN) is a Sun Hydraulics Sun Hydraulics 2-way, pilot-shifted, dual path, proportional throttle, rated 25 gpm (95 L/min.) and installed in cavity T-53AD. MultiFlow supplies genuine Sun Hydraulics cartridges in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| FTEAXCN | Buna-N sealsBuna-N |
|---|---|
| FTEAXCV | Viton sealsViton |
Specifications
| Cavity | T-53AD |
|---|---|
| Series | 3 |
| Capacity | 25 gpm (95 L/min.) |
| Maximum Operating Pressure | 5000 psi (350 bar) |
| Pilot Pressure Required to Shift Valve | 50 - 120 psi (3,5 - 8 bar) |
| Pilot Pressure Required for Full Shift at Rated Flow | 290 - 340 psi (20 - 23 bar) |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 10 in³/min.@1000 psi (160 cc/min.@70 bar) |
| Pilot Volume Displacement | .10 in³ (1,6 cc) |
| Adjustment - No. of CCW Turns from Fully Closed to Fully Open | 5 |
| Hysteresis | 35 % |
| Valve Hex Size | 1 1/4 in. (31,8 mm) |
| Valve Installation Torque | 150 - 160 lbf ft (203 - 217 Nm) |
| Adjustment Screw Internal Hex Size | 5/32 in. (4 mm) |
| Locknut Hex Size | 9/16 in. (15 mm) |
| Locknut Torque | 80 - 90 lbf in. (9 - 10 Nm) |
| Model Weight | 4.40 lb (2,00 kg) |
| Seal kit - Cartridge | Viton: 990053006 |
When installed in Sun's standard T-53A line mount manifold, plug unused ports and expect higher pressure drops.
How to read FTEAXCN
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so FTEAXCN, FTEA-XCN, FTEA XCN are the same part.
| Model | FTEA — Sun Hydraulics 2-way, pilot-shifted, dual path, proportional throttle |
|---|---|
| Control | X — Not Adjustable |
| Spool Configuration | C — Normally Closed |
| Seal Material | N — Buna-N |
| Material / coating | Add /AP (stainless steel, passivated) or /LH (mild steel, zinc-nickel) to the end; no suffix is the standard finish. |
Control options
- L — Stroke Adjustment
- X — Not Adjustable
Spool Configuration options
- C — Normally Closed
- H — Normally Open
Seal Material options
- N — Buna-N
- V — Viton
Manifold & standard assemblies
Sun manifolds for cavity T-53AD (1)
Technical features
- These valves may be pressure compensated by an external, modulating, logic element. Use LR_C-XHN for a bypass circuit or LP_C-XHN for a restrictive circuit.
- The valve provides a degree of self-compensation and may be used as a flow control. To increase the accuracy of flow control, an external, modulating, logic element can be used to maintain a constant flow over a wider range of flows and pressures. See performance curves for additional information.
- The optional L control is a stroke adjustment that limits maximum flow.
- Ports 1 and 4 should be limited to 500 psi (35 bar).
- Pressure at port 4 directly opposes pressure at port 1.
- Accurate pressure compensated control requires that a constant pressure differential be maintained across the valve.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

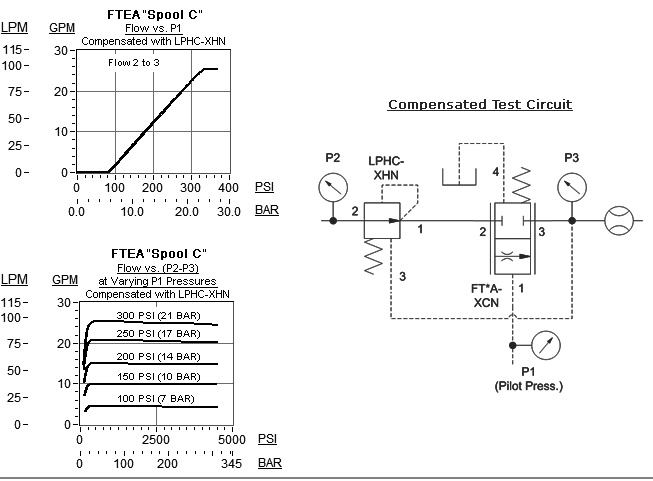

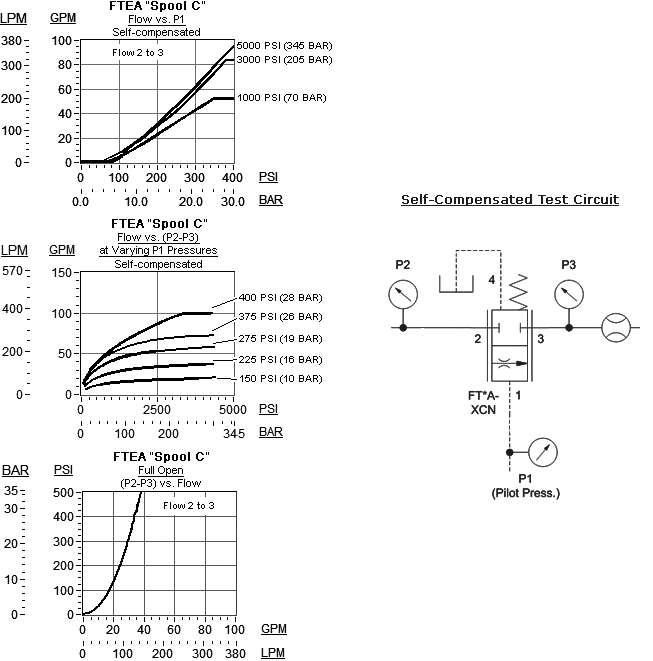

Drawings, symbol & performance curves
Downloads
Datasheet
Technical reference sheets
CAD files
Frequently asked questions
Is FTEAXCN the same as FTEA-XCN?
Yes. Sun Hydraulics writes this part number as FTEAXCN. It is the model FTEA followed by the configuration code; hyphens, slashes and spaces are only dividers, so FTEAXCN, FTEA-XCN, FTEA XCN all refer to the same product.
Do you supply FTEAXCN in the UAE, GCC and India?
Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including FTEAXCN, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.
Can I get the datasheet and CAD files?
Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.
How big is a drop of hydraulic oil?
There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
