FTCAZ-CN – Sun Hydraulics 2-way, pilot-shifted, dual path, proportional throttle with position switch
Roll over image to zoom in
Part number: FTCAZCN · FTCAZ-CN · FTCAZ CN
2-way, pilot-shifted, dual path, proportional throttle with position switch. Cavity T-52AD, capacity 15 gpm (60 L/min.). Genuine Sun Hydraulics cartridge — MultiFlow is an authorized distributor.
FTCAZ-CN overview
FTCAZCN (FTCAZ-CN, FTCAZ CN) is a Sun Hydraulics Sun Hydraulics 2-way, pilot-shifted, dual path, proportional throttle with position switch, rated 15 gpm (60 L/min.) and installed in cavity T-52AD. MultiFlow supplies genuine Sun Hydraulics cartridges in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| FTCAZCN | Buna-N sealsBuna-N |
|---|---|
| FTCAZCV | Viton sealsViton |
Specifications
| Cavity | T-52AD |
|---|---|
| Series | 2 |
| Capacity | 15 gpm (60 L/min.) |
| Maximum Operating Pressure | 5000 psi (350 bar) |
| Pilot Pressure Required to Shift Valve | 60 - 130 psi (4 - 9 bar) |
| Pilot Pressure Required for Full Shift at Rated Flow | 290 - 340 psi (20 - 23 bar) |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 5 in³/min.@1000 psi (80 cc/min.@70 bar) |
| Pilot Volume Displacement | .05 in³ (0,82 cc) |
| Valve Hex Size | 1 1/8 in. (28,6 mm) |
| Valve Installation Torque | 45 - 50 lbf ft (61 - 68 Nm) |
| Model Weight | 1.90 lb (0,85 kg) |
| Seal kit - Cartridge | Viton: 990152006 |
When installed in Sun's standard T-52A line mount manifold, plug unused ports and expect higher pressure drops.
How to read FTCAZCN
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so FTCAZCN, FTCAZ-CN, FTCAZ CN are the same part.
| Model | FTCAZ — Sun Hydraulics 2-way, pilot-shifted, dual path, proportional throttle with position switch |
|---|---|
| Spool Configuration | C — Normally Closed |
| Seal Material | N — Buna-N |
| Material / coating | Add /AP (stainless steel, passivated) or /LH (mild steel, zinc-nickel) to the end; no suffix is the standard finish. |
Spool Configuration options
- C — Normally Closed
Seal Material options
- N — Buna-N
- V — Viton
Manifold & standard assemblies
Sun manifolds for cavity T-52AD (5)
- U7E Sun Hydraulics Throttle, high capacity Line mount manifoldFTCAZCN-U7E — request assembly
- V2Q Sun Hydraulics Four ports Line mount manifoldFTCAZCN-V2Q — request assembly
- V2R Sun Hydraulics Four ports Line mount manifoldFTCAZCN-V2R — request assembly
- XDH Sun Hydraulics Ninety degree Line mount manifoldFTCAZCN-XDH — request assembly
- XDI Sun Hydraulics Four ports Line mount manifoldFTCAZCN-XDI — request assembly
Technical features
- This cartridge is supplied as a sealed, factory set unit and is not field serviceable. Any tampering will violate the product warranty.
- Position switch is CE approved.
- When torquing this cartridge into its cavity, a crow's foot wrench or similar will be required since the position switch precludes the use of a deep socket wrench.
- These valves may be pressure compensated by an external, modulating, logic element. Use LR_C-XHN for a bypass circuit or LP_C-XHN for a restrictive circuit.

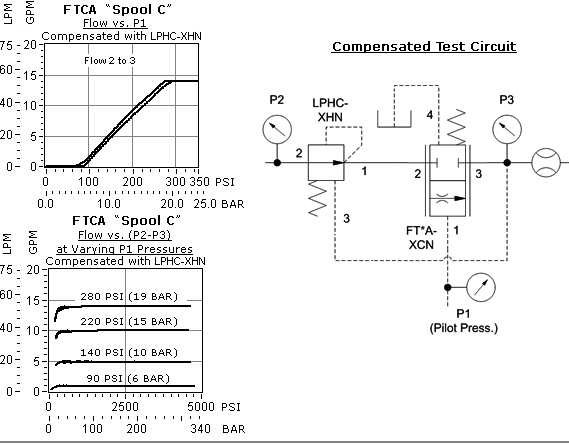

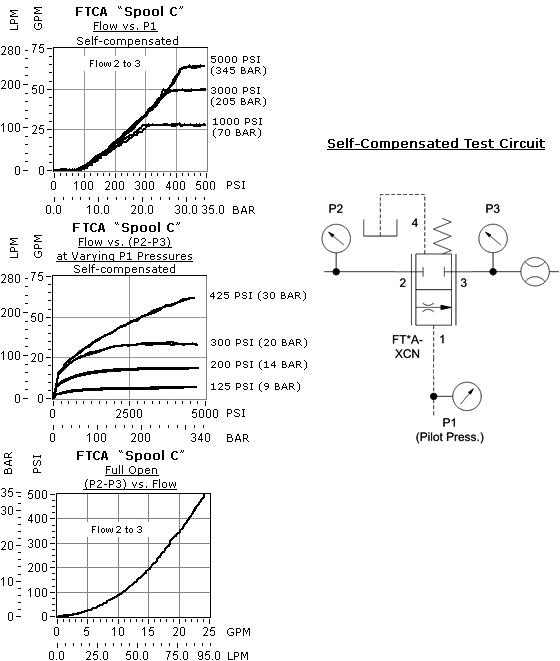

- The valve provides a degree of self-compensation and may be used as a flow control. To increase the accuracy of flow control, an external, modulating, logic element can be used to maintain a constant flow over a wider range of flows and pressures. See performance curves for additional information.
- An optional protective cover, with mounting hardware included, may be ordered separately. See kit number: 991-043.
- Ports 1 and 4 should be limited to 500 psi (35 bar).
- Pressure at port 4 directly opposes pressure at port 1.
- Accurate pressure compensated control requires that a constant pressure differential be maintained across the valve.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

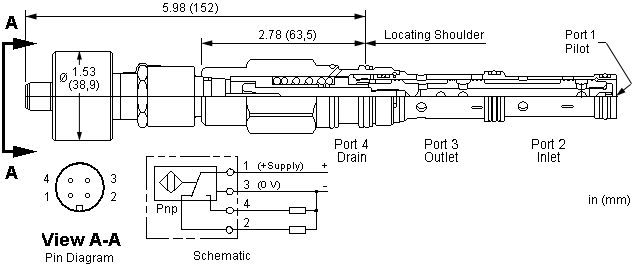

Drawings, symbol & performance curves
Downloads
Datasheet
Technical reference sheets
CAD files
Frequently asked questions
Is FTCAZCN the same as FTCAZ-CN?
Yes. Sun Hydraulics writes this part number as FTCAZCN. It is the model FTCAZ followed by the configuration code; hyphens, slashes and spaces are only dividers, so FTCAZCN, FTCAZ-CN, FTCAZ CN all refer to the same product.
Do you supply FTCAZCN in the UAE, GCC and India?
Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including FTCAZCN, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.
Can I get the datasheet and CAD files?
Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.
How big is a drop of hydraulic oil?
There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
What parts of the Sun cartridge valve are field serviceable?
Only external seals are serviceable. Sun offers replacement seal kits for all cartridge models. The applicable kit part number can be found in the product page's Technical Data table or by using our Cartridge Seal Kit search function located under Accessories. Please note: Converting the external seals from one material to another does not ensure fluid compatibility with that material due to the existence of internal seals within the cartridge.
