FREP-XAN – Sun Hydraulics FLeX Series 3-way, direct-acting, electro-proportional, bypass/restrictive, priority flow control valve
Roll over image to zoom in
Part number: FREPXAN · FREP-XAN · FREP XAN
FLeX Series 3-way, direct-acting, electro-proportional, bypass/restrictive, priority flow control valve. Cavity T-17A, capacity 30 gpm (120 L/min.). Genuine Sun Hydraulics cartridge — MultiFlow is an authorized distributor.
FREP-XAN overview
FREPXAN (FREP-XAN, FREP XAN) is a Sun Hydraulics Sun Hydraulics FLeX Series 3-way, direct-acting, electro-proportional, bypass/restrictive, priority flow control valve, rated 30 gpm (120 L/min.) and installed in cavity T-17A. MultiFlow supplies genuine Sun Hydraulics cartridges in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| FREPXAN | No coilNo coil |
|---|---|
| FREPXAN211 | DIN 43650-Form A, 115 VACDIN 43650-Form A, 115 VAC |
| FREPXAN212 | DIN 43650-Form A, 12 VDCDIN 43650-Form A, 12 VDC |
| FREPXAN212D | DIN 43650-Form A, 12 VDC, with transient voltage suppression (TVS) diodesDIN 43650-Form A, 12 VDC, with transient voltage suppression (TVS) diodes |
Specifications
| Cavity | T-17A |
|---|---|
| Series | 3 |
| Capacity | 30 gpm (120 L/min.) |
| Maximum Operating Pressure | 5000 psi (350 bar) |
| Viscosity Range | 35 - 2000 SUS (2,8 - 380 cSt) |
| Typical Valve Leakage at 110 SUS (24 cSt) from port 1 to port 3 at 1450 psi (100 bar) | 30 mL/min. |
| Typical Valve Leakage at 110 SUS (24 cSt) from port 1 to port 3 at 5000 psi (350 bar) | 110 mL/min. |
| Response Time - Typical | 50 ms |
| Switching Frequency | 3,600 max. cycles/hr |
| Valve Hex Size | 1 1/4 in. (31,8 mm) |
| Valve Installation Torque | 150 - 160 lbf ft (203 - 217 Nm) |
| Model Weight | 1.20 lb (0,55 kg) |
| U.S. Patent # | 10,969,033 |
| Seal kit - Cartridge | Viton: 990017006 |
Please verify cartridge clearance requirements when choosing a Sun manifold. Different valve controls and coils require different clearances. An additional 2.00 inches (50,8 mm) beyond the valve extension is needed for coil installation and removal.
How to read FREPXAN
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so FREPXAN, FREP-XAN, FREP XAN are the same part.
| Model | FREP — Sun Hydraulics FLeX Series 3-way, direct-acting, electro-proportional, bypass/restrictive, priority flow control valve |
|---|---|
| Control | X — No Manual Override |
| Flow Rate | A — Nominal 8 gpm (30 L/min.) |
| Seal Material | N — Buna-N |
| Material / coating | Add /AP (stainless steel, passivated) or /LH (mild steel, zinc-nickel) to the end; no suffix is the standard finish. |
Control options
- P — Manual Pull Override
- X — No Manual Override
Flow Rate options
- A — Nominal 8 gpm (30 L/min.)
- B — Nominal 16 gpm (60 L/min.)
- C — Nominal 22 gpm (88 L/min.)
Seal Material options
- N — Buna-N
- V — Viton
Coil options
- — No coil
- 211 — DIN 43650-Form A, 115 VAC
- 212 — DIN 43650-Form A, 12 VDC
- 212D — DIN 43650-Form A, 12 VDC, with transient voltage suppression (TVS) diodes
- 212X01 — DIN 43650-Form A, 12 VDC, with XMD-01 driver
- 212X02 — DIN 43650-Form A, 12 VDC, with XMD-02 driver
- 214 — DIN 43650-Form A, 14 VDC
- 214D — DIN 43650-Form A, 14 VDC, with transient voltage suppression (TVS) diodes
- 214X01 — DIN 43650-Form A, 14 VDC, with XMD-01 driver
- 214X02 — DIN 43650-Form A, 14 VDC, with XMD-02 driver
- 223 — DIN 43650-Form A, 230 VAC
- 224 — DIN 43650-Form A, 24 VDC
- 224D — DIN 43650-Form A, 24 VDC, with transient voltage suppression (TVS) diodes
- 224X01 — DIN 43650-Form A, 24 VDC, with XMD-01 driver
- 224X02 — DIN 43650-Form A, 24 VDC, with XMD-02 driver
- 228 — DIN 43650-Form A, 28 VDC
- 228D — DIN 43650-Form A, 28 VDC, with transient voltage suppression (TVS) diodes
- 228X01 — DIN 43650-Form A, 28 VDC, with XMD-01 driver
- 228X02 — DIN 43650-Form A, 28 VDC, with XMD-02 driver
- 612 — AMP Junior Timer, 12 VDC
- 612D — AMP Junior Timer, 12 VDC, with transient voltage suppression (TVS) diodes
- 614 — AMP Junior Timer, 14 VDC
- 614D — AMP Junior Timer, 14 VDC, with transient voltage suppression (TVS) diodes
- 624 — AMP Junior Timer, 24 VDC
- 624D — AMP Junior Timer, 24 VDC, with transient voltage suppression (TVS) diodes
- 628 — AMP Junior Timer, 28 VDC
- 628D — AMP Junior Timer, 28 VDC, with transient voltage suppression (TVS) diodes
- 712 — Twin Lead, 12 VDC
- 712D — Twin Lead, 12 VDC, with transient voltage suppression (TVS) diodes
- 714 — Twin Lead, 14 VDC
- 714D — Twin Lead, 14 VDC, with transient voltage suppression (TVS) diodes
- 724 — Twin Lead, 24 VDC
- 724D — Twin Lead, 24 VDC, with transient voltage suppression (TVS) diodes
- 728 — Twin Lead, 28 VDC
- 812 — Metri-Pack, 12 VDC
- 812D — Metri-Pack, 12 VDC, with transient voltage suppression (TVS) diodes
- 814 — Metri-Pack, 14 VDC
- 814D — Metri-Pack, 14 VDC, with transient voltage suppression (TVS) diodes
- 824 — Metri-Pack, 24 VDC
- 824D — Metri-Pack, 24 VDC, with transient voltage suppression (TVS) diodes
- 828 — Metri-Pack, 28 VDC
- 828D — Metri-Pack, 28 VDC, with transient voltage suppression (TVS) diodes
- 912 — Deutsch DT04-2P, 12 VDC
- 912D — Deutsch DT04-2P, 12 VDC, with transient voltage suppression (TVS) diodes
- 912X01 — Deutsch DT04-2P, 12 VDC, with XMD-01 driver
- 912X02 — Deutsch DT04-2P, 12 VDC, with XMD-02 driver
- 914 — Deutsch DT04-2P, 14 VDC
- 914D — Deutsch DT04-2P, 14 VDC, with transient voltage suppression (TVS) diodes
- 914X01 — Deutsch DT04-2P, 14 VDC, with XMD-01 driver
- 914X02 — Deutsch DT04-2P, 14 VDC, with XMD-02 driver
- 924 — Deutsch DT04-2P, 24 VDC
- 924D — Deutsch DT04-2P, 24 VDC, with transient voltage suppression (TVS) diodes
- 924X01 — Deutsch DT04-2P, 24 VDC, with XMD-01 driver
- 924X02 — Deutsch DT04-2P, 24 VDC, with XMD-02 driver
- 928 — Deutsch DT04-2P, 28 VDC
- 928D — Deutsch DT04-2P, 28 VDC, with transient voltage suppression (TVS) diodes
- 928X01 — Deutsch DT04-2P, 28 VDC, with XMD-01 driver
- 928X02 — Deutsch DT04-2P, 28 VDC, with XMD-02 driver
- JM24BD — Explosion Proof, Metric (M20 X 1.5), 24 VDC, 180 Degree, CSA and ATEX Certification
- JM24CD — Explosion Proof, Metric (M20 X 1.5), 24 VDC, 90 Degree, CSA and ATEX Certification
- JN24BD — Explosion Proof, 1/2 inch NPT mechanical conduit, 24 VDC, 180 Degree, CSA and ATEX Certification
- JN24CD — Explosion Proof, 1/2 inch NPT mechanical conduit, 24 VDC, 90 Degree, CSA and ATEX Certification
Manifold & standard assemblies
Sun manifolds for cavity T-17A (377)
- BJO Sun Hydraulics ISO 05 – X&Y: On P, port 3 to T Sandwich manifoldFREPXAN-BJO — request assembly
- BK2 Sun Hydraulics ISO 07: Reducer on A with reverse flow check Sandwich manifoldFREPXAN-BK2 — request assembly
- BK4 Sun Hydraulics ISO 07: Sequence into A with reverse flow check Sandwich manifoldFREPXAN-BK4 — request assembly
- BK5 Sun Hydraulics ISO 07: Sequence into B with reverse flow check Sandwich manifoldFREPXAN-BK5 — request assembly
- BK6 Sun Hydraulics ISO 07: Sequence out of A with reverse flow check Sandwich manifoldFREPXAN-BK6 — request assembly
- BK7 Sun Hydraulics ISO 07: Sequence out of B with reverse flow check Sandwich manifoldFREPXAN-BK7 — request assembly
- BK8 Sun Hydraulics ISO 07: Cushion lock Sandwich manifoldFREPXAN-BK8 — request assembly
- BK9 Sun Hydraulics ISO 07: Reducer on A and B with reverse flow check Sandwich manifoldFREPXAN-BK9 — request assembly
- BKA Sun Hydraulics ISO 07: On A, port 3 to B Sandwich manifoldFREPXAN-BKA — request assembly
- BKB Sun Hydraulics ISO 07: On B, port 3 to A Sandwich manifoldFREPXAN-BKB — request assembly
- BKC Sun Hydraulics ISO 07: On A, port 3 external Sandwich manifoldFREPXAN-BKC — request assembly
- BKJ Sun Hydraulics ISO 07: Reducer on B with reverse flow check Sandwich manifoldFREPXAN-BKJ — request assembly
Technical features
- The valve's patent-pending design uses a pull-type solenoid that allows the main throttle spool to be less sensitive to flow forces, resulting in greater efficiencies, with more flow control using less power.
- FLeX Series proportional valves are fully compatible with the XMD Expandable Mobile Drivers from Sun.
- Designed and tested to 10 million on-off operational cycles.
- Exceeds new NFPA test standard T2.6.1 R2014 for fatigue and burst pressure ratings.
- Designed using CFD fluid simulation for optimized geometries.
- All configurations of this valve include zinc-nickel plating as standard for 1000-hour salt fog protection.
- This valve can be used with both the 740 Series high-power coils and 747 Series hazardous location coils.
- A wide variety of coil termination and voltage options are available, with and without surge protection. See the CONFIGURATION section.
- Coil connector options offer ratings up to IP69K. See individual coil product pages for details.
- Both, priority and bypass flow, are usable up to the system operating pressure.
- For optimum performance, an amplifier with current feedback and adjustable dither (80 - 250 Hz) should be used.
- Bypass flow is not available until priority flow requirements are satisfied.
- Pressure at the bypass port (port 2) may exceed pressure at the priority port (port 3).
- In applications where the priority flow will be blocked completely, bypass pressure drop will increase over time unless a leak path is provided for the priority flow.
- Priority flow remains relatively constant regardless of variation in input flow.
- The minimum bleed at port 3 must meet or exceed the published leakage numbers.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

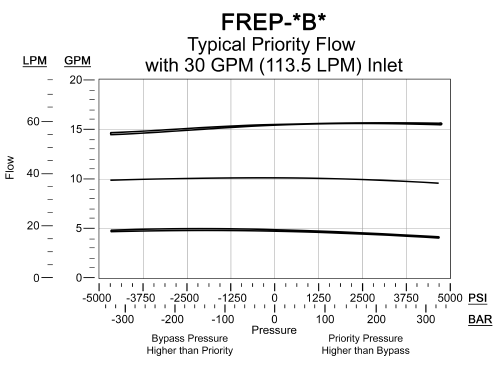

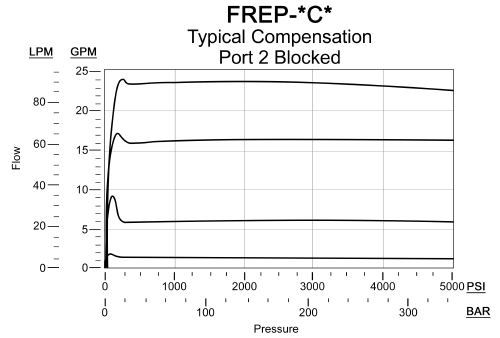

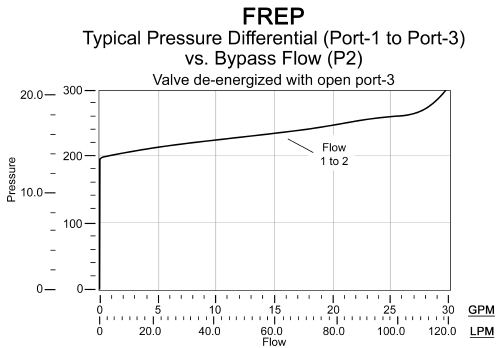

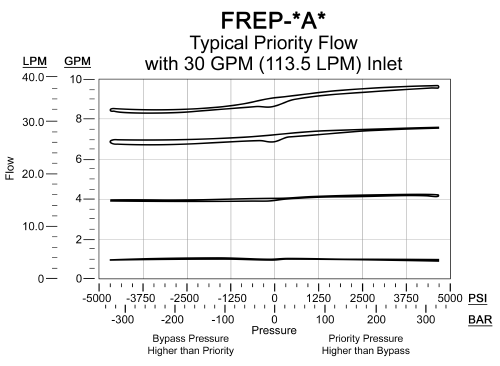

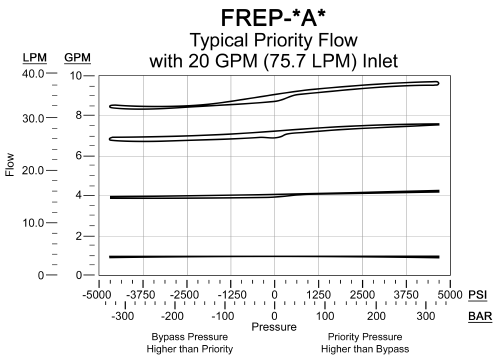

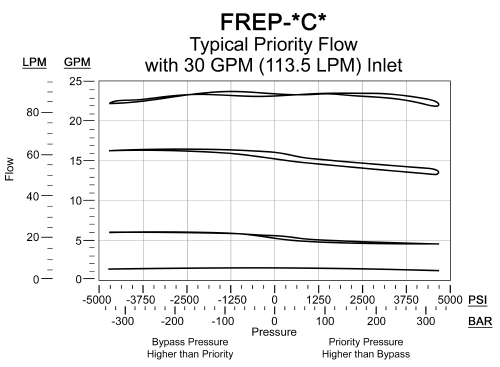

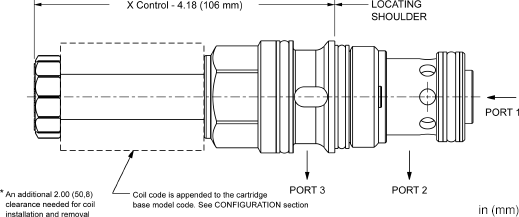

Drawings, symbol & performance curves
Downloads
Datasheet
Technical reference sheets
- 747_Series_Coils_CoC-CSA (PDF 106 KB)
- 747_Series_Coils_Sira_16ATEX1091X_Iss1 (PDF 977 KB)
- 999-901-334 (PDF 344 KB)
- FloatingStyleScrewInCartridge2 (PDF 1 MB)
- TT_US_Amplifier-New (PDF 2 MB)
- TT_US_Cavity-New (PDF 522 KB)
- TT_US_Solenoid-Review1-New (PDF 1 MB)
- TT_US_coils-New (PDF 975 KB)
- rel-Prop_terms-definitionsN (PDF 3 MB)
CAD files
Frequently asked questions
Is FREPXAN the same as FREP-XAN?
Yes. Sun Hydraulics writes this part number as FREPXAN. It is the model FREP followed by the configuration code; hyphens, slashes and spaces are only dividers, so FREPXAN, FREP-XAN, FREP XAN all refer to the same product.
Do you supply FREPXAN in the UAE, GCC and India?
Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including FREPXAN, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.
Can I get the datasheet and CAD files?
Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.
How accurate are Sun's flow controls?
We claim +/- 10%. We set to +/- 5% in production testing to allow for differences in customers' conditions. If you want accuracy, stay in the bottom 2/3rds of the range. Our 12 gpm (45 L/min.) flow controls are quite flat at 9 gpm (34 L/min.) and dead flat below 6 gpm (23 L/min.), until you get to the bottom of the range. Below about .25 gpm (1 L/min.), spool leakage and orifice conditions start to limit accuracy.
I have a heat problem, will Sun's priority flow control help?
I am afraid not. Unless you are overflowing your current valve and correctly size ours, you are not likely to notice any improvement. Priority flow controls are not efficient devices. They are an easy way to get more than 1 source of oil from 1 pump but they can generate a lot of heat. Try to size your actuators so the pressures are similar on both the priority and the bypass circuits. If you can't do that, try to have the lower flow leg be the lower pressure. The pump pressure is determined by whichever leg is higher and if there is flow that is taking a pressure drop that is not doing work it is creating heat.
What happens if I block the control flow (priority) port?
All flow is blocked, hence the term priority. The priority flow has to be satisfied.
What happens if I block the bypass port on a priority flow control?
The valve acts as a 2 port restrictive flow control.
What is the compensating pressure of Sun's flow controls?
The spring force in our flow controls equates to about 100 psi (7 bar). This is high enough to give the valves acceptable capacity and not too high for proper circuit operation. 100 psi (7 bar) is the spring force; at the upper end of the flow control's range, the drop through the valve will be as high as 250 psi (17 bar) before it starts modulating.
How big is a drop of hydraulic oil?
There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
What is the pressure drop through a flow control?
In a meter-in flow control circuit if the pump is set at 3000 psi and the load is 2000 psi the drop through the flow control is 1000 psi. In a meter-out circuit with the load at 2000 psi the drop through the flow control is 2000 psi.
Does this FLeX series throttle control flow bidirectionally?
No. This cartridge only controls flow in the 2 to 1 flow direction. From 1 to 2, the valve is always fully open.
Is the FLeX program available in QuickDesign SmartConnect?
Yes. All FLeX phase 1 valves are available in the SmartConnect schematic tool, and are also available for submittal to QuickDesign.
What parts of the Sun cartridge valve are field serviceable?
Only external seals are serviceable. Sun offers replacement seal kits for all cartridge models. The applicable kit part number can be found in the product page's Technical Data table or by using our Cartridge Seal Kit search function located under Accessories. Please note: Converting the external seals from one material to another does not ensure fluid compatibility with that material due to the existence of internal seals within the cartridge.
Do FLeX valves utilize a floating nose design?
Yes. All FLeX valves utilize the Sun floating nose design.
What is the difference between nominal and maximum flow capacity?
Nominal flow capacity is based on performance limits. Maximum flow capacity is based on pressure drop. When selecting any direct-acting solenoid valve, first check the performance limits plot, then check if pressure drop is acceptable.
Can FLeX proportional valves be driven with an explosion proof coil?
Yes. The 747 series explosion proof coils can be used on any FLeX proportional valve.
