FMB – Sun Hydraulics Cross port with make up checks Line mount manifold

Q: Is FMB the same as FMB/10?

Yes. Sun Hydraulics writes this part number as FMB. It is the model FMB followed by the configuration code; hyphens, slashes and spaces are only dividers, so FMB, FMB/10, FMB/11, FMB/15, FMB/16, FMB/V, FMB/S, FMB/S3, FMB/S4, FMB/S5, FMB/Y, FMB/Y3, FMB/Y4, FMB/Y5 all refer to the same product.

Brand: Sun Hydraulics
SKU: FMB

FMB Sun Hydraulics Cross port with make up checks Line mount manifold drawing

Roll over image to zoom in

Part number: FMB · FMB/10 · FMB/11 · FMB/15 · FMB/16 · FMB/V · FMB/S · FMB/S3 · FMB/S4 · FMB/S5 · FMB/Y · FMB/Y3 · FMB/Y4 · FMB/Y5

Brand Sun HydraulicsType Line mountCavity T-10A

Cross port with make up checks Line mount manifold, cavity T-10A, 3/8″ NPTF ports. Genuine Sun Hydraulics — MultiFlow is an authorized distributor.

Material/finish:

Clear

Quantity:

SKU: FMB Category: Line mount Brand: Sun Hydraulics

FMB overview

FMB (FMB/10, FMB/11, FMB/15, FMB/16) is a Sun Hydraulics Sun Hydraulics Cross port with make up checks Line mount manifold and installed in cavity T-10A. MultiFlow supplies genuine Sun Hydraulics manifolds in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.

Ordering codes

Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.

FMB	Aluminium, Buna-N seals6061-T651 Aluminum, Buna-N
FMB/10	Black anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II
FMB/11	Clear anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
FMB/15	Black anodized aluminium, Viton seals6061-T651 Aluminum, Viton, Black Anodize - Per MIL SPEC 8625F Type II, Class II
FMB/16	Clear anodized aluminium, Viton seals6061-T651 Aluminum, Viton, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
FMB/V	Aluminium, Viton seals6061-T651 Aluminum, Viton
FMB/S	Ductile iron, dewatering-oil finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Dewatering Oil
FMB/S3	Clear zinc plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer
FMB/S4	Ductile iron, black oxide finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Chem. Black
FMB/S5	Electroless nickel plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Electroless Nickel
FMB/Y	Ductile iron, dewatering-oil finish, Viton seals65-45-12 Ductile Iron, Viton, Dewatering Oil
FMB/Y3	Clear zinc plated ductile iron, Viton seals65-45-12 Ductile Iron, Viton, Trivalent Clear Zinc with Top Sealer
FMB/Y4	Ductile iron, black oxide finish, Viton seals65-45-12 Ductile Iron, Viton, Chem. Black
FMB/Y5	Electroless nickel plated ductile iron, Viton seals65-45-12 Ductile Iron, Viton, Electroless Nickel

Specifications

Body Type	Line mount
Interface	None
Body Features	Cross port with make up checks
Mounting Hole Diameter	.34 in. (8.6 mm)
Mounting Hole Depth	Through
Mounting Hole Quantity	2
Open Cavities	2
Cavity	T-10A
Port Size	3/8" NPTF

Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.

How to read FMB

Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so FMB, FMB/10, FMB/11, FMB/15, FMB/16, FMB/V, FMB/S, FMB/S3, FMB/S4, FMB/S5, FMB/Y, FMB/Y3, FMB/Y4, FMB/Y5 are the same part.

Model	FMB — Sun Hydraulics Cross port with make up checks Line mount manifold
Modifier	Add the modifier after the model, e.g. FMB/10 = black anodized aluminium. No modifier = standard material.

Modifier options

— 6061-T651 Aluminum, Buna-N
/10 — 6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II
/11 — 6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
/15 — 6061-T651 Aluminum, Viton, Black Anodize - Per MIL SPEC 8625F Type II, Class II
/16 — 6061-T651 Aluminum, Viton, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
/V — 6061-T651 Aluminum, Viton
/S — 65-45-12 Ductile Iron, Buna-N, Dewatering Oil
/S3 — 65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer
/S4 — 65-45-12 Ductile Iron, Buna-N, Chem. Black
/S5 — 65-45-12 Ductile Iron, Buna-N, Electroless Nickel
/Y — 65-45-12 Ductile Iron, Viton, Dewatering Oil
/Y3 — 65-45-12 Ductile Iron, Viton, Trivalent Clear Zinc with Top Sealer
/Y4 — 65-45-12 Ductile Iron, Viton, Chem. Black
/Y5 — 65-45-12 Ductile Iron, Viton, Electroless Nickel

Cartridges that fit this manifold

Sun cartridges for cavity T-10A (21)

View all 21 →

Ports

Modifiers Ports FMB, /10, /11, /15, /16, /V All Ports: 3/8" NPTF;

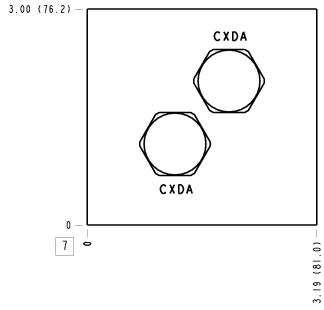

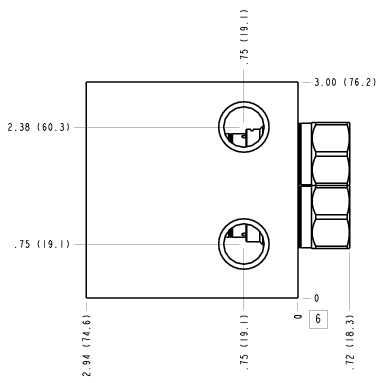

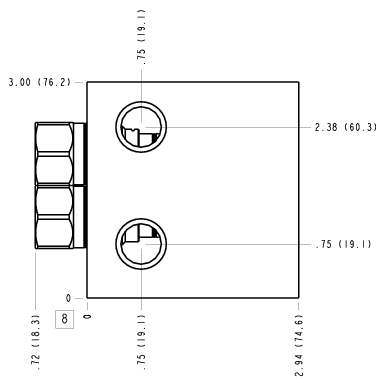

Drawings, symbol & performance curves

Downloads

Datasheet

Datasheet (FMB) (PDF 91 KB)

CAD files (from Sun Hydraulics)

Frequently asked questions

Is FMB the same as FMB/10?

Yes. Sun Hydraulics writes this part number as FMB. It is the model FMB followed by the configuration code; hyphens, slashes and spaces are only dividers, so FMB, FMB/10, FMB/11, FMB/15, FMB/16, FMB/V, FMB/S, FMB/S3, FMB/S4, FMB/S5, FMB/Y, FMB/Y3, FMB/Y4, FMB/Y5 all refer to the same product.

Do you supply FMB in the UAE, GCC and India?

Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including FMB, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.

Can I get the datasheet and CAD files?

Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.

Manufacturer reference: https://www.sunhydraulics.com/model/FMB
