FKIA-XCN – Sun Hydraulics 2-way, pilot-shifted, proportional throttle, high capacity
Part number: FKIAXCN · FKIA-XCN · FKIA XCN
2-way, pilot-shifted, proportional throttle, high capacity. Cavity T-24A, capacity 60 gpm (240 L/min.). Genuine Sun Hydraulics cartridge — MultiFlow is an authorized distributor.
FKIA-XCN overview
FKIAXCN (FKIA-XCN, FKIA XCN) is a Sun Hydraulics Sun Hydraulics 2-way, pilot-shifted, proportional throttle, high capacity, rated 60 gpm (240 L/min.) and installed in cavity T-24A. MultiFlow supplies genuine Sun Hydraulics cartridges in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| FKIAXCN/AP | Stainless Steel, PassivatedStainless Steel, Passivated |
|---|---|
| FKIAXCN | Standard Material/CoatingStandard Material/Coating |
Specifications
| Cavity | T-24A |
|---|---|
| Series | 4 |
| Capacity | 60 gpm (240 L/min.) |
| Maximum Operating Pressure | 5000 psi (350 bar) |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 6 in³/min.@1000 psi (98 cc/min.@70 bar) |
| Pilot Volume Displacement | .20 in³ (3,3 cc) |
| Minimum Pilot Pressure to Operate | 100 psi (7 bar) |
| Hysteresis | ± 2 % |
| Adjustment - No. of CW Turns from Min. to Max. setting | 5 |
| Valve Hex Size | 1 5/8 in. (41,3 mm) |
| Valve Installation Torque | 350 - 375 lbf ft (474 - 508 Nm) |
| Adjustment Screw Internal Hex Size | 5/32 in. (4 mm) |
| Locknut Hex Size | 9/16 in. (15 mm) |
| Locknut Torque | 80 - 90 lbf in. (9 - 10 Nm) |
| Model Weight | 3.30 lb (1,50 kg) |
| Seal kit - Cartridge | Viton: 990024006 |
How to read FKIAXCN
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so FKIAXCN, FKIA-XCN, FKIA XCN are the same part.
| Model | FKIA — Sun Hydraulics 2-way, pilot-shifted, proportional throttle, high capacity |
|---|---|
| Control | X — Not Adjustable |
| Spool Configuration | C — Normally Closed |
| Seal Material | N — Buna-N |
| Material / coating | Add /AP (stainless steel, passivated) or /LH (mild steel, zinc-nickel) to the end; no suffix is the standard finish. |
Control options
- L — Tuning Adjustment
- X — Not Adjustable
Spool Configuration options
- C — Normally Closed
Seal Material options
- N — Buna-N
- V — Viton
Material/coating options
- /AP — Stainless Steel, Passivated
- — Standard Material/Coating
Manifold & standard assemblies
Sun manifolds for cavity T-24A (74)
- Q46 Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldFKIAXCN-Q46 — request assembly
- Q48 Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldFKIAXCN-Q48 — request assembly
- Q4D Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldFKIAXCN-Q4D — request assembly
- Q4E Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldFKIAXCN-Q4E — request assembly
- Q4F Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldFKIAXCN-Q4F — request assembly
- Q4L Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldFKIAXCN-Q4L — request assembly
- Q4M Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldFKIAXCN-Q4M — request assembly
- Q4N Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldFKIAXCN-Q4N — request assembly
- Q4R Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldFKIAXCN-Q4R — request assembly
- Q4S Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldFKIAXCN-Q4S — request assembly
- Q4W Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldFKIAXCN-Q4W — request assembly
- Q4X Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldFKIAXCN-Q4X — request assembly
Technical features
- These valves may be pressure compensated by an external, modulating, logic element. Use LR_C-XHN for a bypass circuit or LP_C-XHN for a restrictive circuit.
- The valve provides a degree of self-compensation and may be used as a flow control. To increase the accuracy of flow control, an external, modulating, logic element can be used to maintain a constant flow over a wider range of flows and pressures. See performance curves for additional information.
- Ports 1 and 4 should be limited to 500 psi (35 bar).
- Pressure at port 4 directly opposes pressure at port 1.
- An optional tuning adjustment (L control) is offered to vary the pilot pressure required to control flow. The tuning adjustment provides a means to manually increase or decrease flow at a given pilot pressure. The adjustment range is 20 - 180 psi (1,4 - 13 bar), 100 psi (7 bar) Standard Setting.
- Accurate pressure compensated control requires that a constant pressure differential be maintained across the valve.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

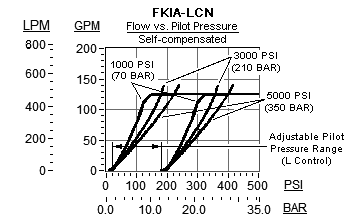

Drawings, symbol & performance curves
Downloads
Datasheet
Technical reference sheets
CAD files
Frequently asked questions
Is FKIAXCN the same as FKIA-XCN?
Yes. Sun Hydraulics writes this part number as FKIAXCN. It is the model FKIA followed by the configuration code; hyphens, slashes and spaces are only dividers, so FKIAXCN, FKIA-XCN, FKIA XCN all refer to the same product.
Do you supply FKIAXCN in the UAE, GCC and India?
Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including FKIAXCN, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.
Can I get the datasheet and CAD files?
Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.
How big is a drop of hydraulic oil?
There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
What parts of the Sun cartridge valve are field serviceable?
