DPBM-LAN – Sun Hydraulics 2-way, pilot-operated, directional valve with drain to port 4 – normally open
Part number: DPBMLAN · DPBM-LAN · DPBM LAN
2-way, pilot-operated, directional valve with drain to port 4 – normally open. Cavity T-21A, capacity 7 gpm (28 L/min.). Genuine Sun Hydraulics cartridge — MultiFlow is an authorized distributor.
DPBM-LAN overview
DPBMLAN (DPBM-LAN, DPBM LAN) is a Sun Hydraulics Sun Hydraulics 2-way, pilot-operated, directional valve with drain to port 4 - normally open, rated 7 gpm (28 L/min.) and installed in cavity T-21A. MultiFlow supplies genuine Sun Hydraulics cartridges in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| DPBMLAN/AP | Stainless Steel, PassivatedStainless Steel, Passivated |
|---|---|
| DPBMLAN/LH | Mild Steel, Zinc-NickelMild Steel, Zinc-Nickel |
| DPBMLAN | Standard Material/CoatingStandard Material/Coating |
Specifications
| Cavity | T-21A |
|---|---|
| Series | 1 |
| Capacity | 7 gpm (28 L/min.) |
| Maximum Operating Pressure | 5000 psi (350 bar) |
| Factory Pressure Settings Established at | 4 gpm (15 L/min.) |
| Control Pilot Flow | 7 - 10 in³/min. (0,11 - 0,16 L/min.) |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 in³/min.@1000 psi (15 cc/min.@70 bar) |
| Adjustment - No. of CW Turns from Min. to Max. setting | 5 |
| Valve Hex Size | 7/8 in. (22,2 mm) |
| Valve Installation Torque | 30 - 35 lbf ft (41 - 47 Nm) |
| Adjustment Screw Internal Hex Size | 5/32 in. (4 mm) |
| Locknut Hex Size | 9/16 in. (15 mm) |
| Locknut Torque | 80 - 90 lbf in. (9 - 10 Nm) |
| Model Weight | .60 lb (0,30 kg) |
| Seal kit - Cartridge | Viton: 990021006 |
How to read DPBMLAN
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so DPBMLAN, DPBM-LAN, DPBM LAN are the same part.
| Model | DPBM — Sun Hydraulics 2-way, pilot-operated, directional valve with drain to port 4 - normally open |
|---|---|
| Control | L — Standard Screw Adjustment |
| Adjustment Range | A — 100 - 3000 psi (7 - 210 bar), 1000 psi (70 bar) Standard Setting |
| Seal Material | N — Buna-N |
| Material / coating | Add /AP (stainless steel, passivated) or /LH (mild steel, zinc-nickel) to the end; no suffix is the standard finish. |
Control options
- C — Tamper Resistant - Factory Set
- K — Handknob
- L — Standard Screw Adjustment
Adjustment Range options
- A — 100 - 3000 psi (7 - 210 bar), 1000 psi (70 bar) Standard Setting
- B — 50 - 1500 psi (3,5 - 105 bar), 1000 psi (70 bar) Standard Setting
- D — 25 - 800 psi (1,7 - 55 bar), 400 psi (28 bar) Standard Setting
- E — 25 - 400 psi (1,7 - 28 bar), 200 psi (14 bar) Standard Setting
- W — 150 - 4500 psi (10,5 - 315 bar), 1000 psi (70 bar) Standard Setting
- J — 25 - 1500 psi (1,7 - 105 bar), 1000 psi (70 bar) Standard Setting
Seal Material options
- N — Buna-N
- V — Viton
Material/coating options
- /AP — Stainless Steel, Passivated
- /LH — Mild Steel, Zinc-Nickel
- — Standard Material/Coating
Manifold & standard assemblies
Sun manifolds for cavity T-21A (54)
- M4A Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldDPBMLAN-M4A — request assembly
- M4B Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldDPBMLAN-M4B — request assembly
- M4C Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldDPBMLAN-M4C — request assembly
- M4I Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldDPBMLAN-M4I — request assembly
- M4J Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldDPBMLAN-M4J — request assembly
- M4K Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldDPBMLAN-M4K — request assembly
- M4T Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldDPBMLAN-M4T — request assembly
- M4U Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldDPBMLAN-M4U — request assembly
- M4V Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldDPBMLAN-M4V — request assembly
- MAA Sun Hydraulics Ninety degree Line mount manifoldDPBMLAN-MAA — request assembly
- MAB Sun Hydraulics Ninety degree Line mount manifoldDPBMLAN-MAB — request assembly
- MAC Sun Hydraulics Ninety degree Line mount manifoldDPBMLAN-MAC — request assembly
Technical features
- Port 4 can be blocked to prevent the valve from shifting.
- Port 3 can be used as a work port.
- Direct-acting and pilot-operated versions of these valves are interchangeable. They fit the same cavities and have the same flow paths.
- Pressure at port 4 is directly additive to the setting of the valve.
- This valve is not bistable; it is capable of modulating between the two positions shown.
- Maximum pressure at port 3 should be limited to 3000 psi (210 bar). This is due to fatigue strength limits not hydraulic operating limits.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP for external stainless steel components, or /LH for external zinc-nickel plated components. See the CONFIGURATION section for all options. For further details, please see the Materials of Construction page located under TECH RESOURCES.
- When pilot pressure exceeds the valve setting, pilot flow may be a consideration. See performance curves for pilot consumption vs. load pressure above the valve setting. If this is a problem, the direct acting version of this valve would be a solution.
- Incorporates the Sun floating-style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

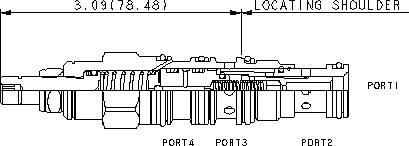

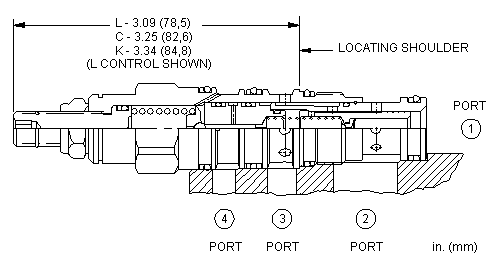

Drawings, symbol & performance curves
Downloads
Datasheet
Technical reference sheets
- 999-901-334 (PDF 344 KB)
- FloatingStyleScrewInCartridge2 (PDF 1 MB)
- TT_US_Cavity-New (PDF 522 KB)
- TT_US_PCDirectional-New_1 (PDF 630 KB)
CAD files
Frequently asked questions
Is DPBMLAN the same as DPBM-LAN?
Yes. Sun Hydraulics writes this part number as DPBMLAN. It is the model DPBM followed by the configuration code; hyphens, slashes and spaces are only dividers, so DPBMLAN, DPBM-LAN, DPBM LAN all refer to the same product.
Do you supply DPBMLAN in the UAE, GCC and India?
Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including DPBMLAN, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.
Can I get the datasheet and CAD files?
Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.
How big is a drop of hydraulic oil?
There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
Direct acting or pilot operated - what do I use?
Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.
What parts of the Sun cartridge valve are field serviceable?
I used a DP** in a circuit but it hangs. What happened?
DP**s and DR**s are from the reducer/reliever family and are very capable of modulating. They are not bistable.
Where would I use a DR__ instead of a DP__?
In many circuits the directional cartridge is set to shift at a low pressure no matter how high the pilot pressure goes. If you use a DP__ , the pilot flow increases to significant amounts. A DR__ however will only consume a small amount of flow. A DP__ is useful when you want to block or open the pilot flow to shift the valve.
Manufacturer reference: https://www.sunhydraulics.com/model/DPBM
