CXTA-XCN – Sun Hydraulics Free flow nose to side check valve – common cavity
Part number: CXTAXCN · CXTA-XCN · CXTA XCN
Free flow nose to side check valve – common cavity. Cavity SC-08-02, capacity 10 gpm (40 L/min.). Genuine Sun Hydraulics cartridge — MultiFlow is an authorized distributor.
CXTA-XCN overview
CXTAXCN (CXTA-XCN, CXTA XCN) is a Sun Hydraulics Sun Hydraulics Free flow nose to side check valve - common cavity, rated 10 gpm (40 L/min.) and installed in cavity SC-08-02. MultiFlow supplies genuine Sun Hydraulics cartridges in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Specifications
| Cavity | SC-08-02 |
|---|---|
| Series | 0C |
| Capacity | 10 gpm (40 L/min.) |
| Maximum Operating Pressure | 5000 psi (350 bar) |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 5 drops/min. (0,3 cc/min.) |
| Valve Hex Size | 24 mm |
| Valve Installation Torque | 19 - 22 lbf ft (26 - 30 Nm) |
| Model Weight | .20 lb (0,10 kg) |
How to read CXTAXCN
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so CXTAXCN, CXTA-XCN, CXTA XCN are the same part.
| Model | CXTA — Sun Hydraulics Free flow nose to side check valve - common cavity |
|---|---|
| Control | X — - |
| Cracking Pressure | C — 36 psi |
| Seal Material | N — Buna-N |
| Material / coating | Add /AP (stainless steel, passivated) or /LH (mild steel, zinc-nickel) to the end; no suffix is the standard finish. |
Control options
- X — -
Cracking Pressure options
- A — 5 psi
- C — 36 psi
- E — 72 psi
Seal Material options
- N — Buna-N
Manifold & standard assemblies
Sun manifolds for cavity SC-08-02 (12)
- JQA Sun Hydraulics Ninety degree Line mount manifoldCXTAXCN-JQA — request assembly
- JQB Sun Hydraulics Ninety degree Line mount manifoldCXTAXCN-JQB — request assembly
- JQC Sun Hydraulics Ninety degree Line mount manifoldCXTAXCN-JQC — request assembly
- JQD Sun Hydraulics Ninety degree Line mount manifoldCXTAXCN-JQD — request assembly
- JQH Sun Hydraulics Ninety degree Line mount manifoldCXTAXCN-JQH — request assembly
- JQI Sun Hydraulics Ninety degree Line mount manifoldCXTAXCN-JQI — request assembly
- JQJ Sun Hydraulics Ninety degree Line mount manifoldCXTAXCN-JQJ — request assembly
- JQK Sun Hydraulics Ninety degree Line mount manifoldCXTAXCN-JQK — request assembly
- JQT Sun Hydraulics Ninety degree Line mount manifoldCXTAXCN-JQT — request assembly
- JQU Sun Hydraulics Ninety degree Line mount manifoldCXTAXCN-JQU — request assembly
- JQV Sun Hydraulics Ninety degree Line mount manifoldCXTAXCN-JQV — request assembly
- JQW Sun Hydraulics Ninety degree Line mount manifoldCXTAXCN-JQW — request assembly
Technical features
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- This Check valve offers an extremely low leakage rate with a maximum leakage of less than 5 drops per minute (0,33 cc/min).
- The cartridge installation torque of 30 lbf-ft (40,7 Nm) is required for best performance.

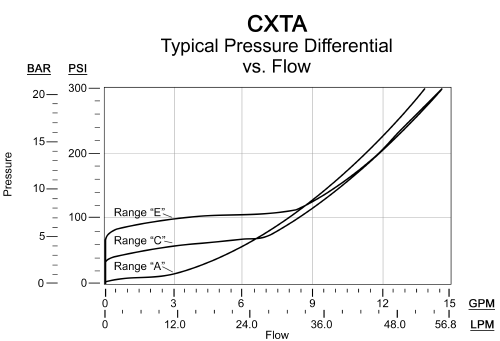

Drawings, symbol & performance curves
Downloads
Datasheet
Technical reference sheets
CAD files
Frequently asked questions
Is CXTAXCN the same as CXTA-XCN?
Yes. Sun Hydraulics writes this part number as CXTAXCN. It is the model CXTA followed by the configuration code; hyphens, slashes and spaces are only dividers, so CXTAXCN, CXTA-XCN, CXTA XCN all refer to the same product.
Do you supply CXTAXCN in the UAE, GCC and India?
Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including CXTAXCN, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.
Can I get the datasheet and CAD files?
Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.
How big is a drop of hydraulic oil?
There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
Direct acting or pilot operated - what do I use?
Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.
I need to discharge a large accumulator. How can I increase the capacity of my discharge circuit?
Because of the very high ratio, the COFO has limited capacity. The discharge path is across a .050 inch (1,3 mm) diameter orifice. If you have large accumulators combined with low precharge pressures, this may not discharge the energy quickly enough. Using the COFO XDN cartridge in conjunction with an LODA XDN will provide capacity for larger applications.
What parts of the Sun cartridge valve are field serviceable?
