CXJAXCN – Sun Hydraulics Free flow nose to side check valve, Standard Material/Coating
Roll over image to zoom in
Part number: CXJAXCN · CXJA-XCN · CXJA XCN
Free flow nose to side check valve. Cavity T-18A, capacity 160 gpm (610 L/min.). Genuine Sun Hydraulics cartridge — MultiFlow is an authorized distributor.
CXJA-XCN overview
CXJAXCN (CXJA-XCN, CXJA XCN) is a Sun Hydraulics Sun Hydraulics Free flow nose to side check valve, rated 160 gpm (610 L/min.) and installed in cavity T-18A. MultiFlow supplies genuine Sun Hydraulics cartridges in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| CXJAXCN/AP | Stainless Steel, PassivatedStainless Steel, Passivated |
|---|---|
| CXJAXCN/LH | Mild Steel, Zinc-NickelMild Steel, Zinc-Nickel |
| CXJAXCN | Standard Material/CoatingStandard Material/Coating |
Specifications
| Cavity | T-18A |
|---|---|
| Series | 4 |
| Capacity | 160 gpm (610 L/min.) |
| Maximum Operating Pressure | 5000 psi (350 bar) |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min. (0,07 cc/min.) |
| Valve Hex Size | 1 5/8 in. (41,3 mm) |
| Valve Installation Torque | 350 - 375 lbf ft (474 - 508 Nm) |
| Model Weight | 2.10 lb (0,95 kg) |
| Seal kit - Cartridge | Viton: 990018006 |
How to read CXJAXCN
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so CXJAXCN, CXJA-XCN, CXJA XCN are the same part.
| Model | CXJA — Sun Hydraulics Free flow nose to side check valve |
|---|---|
| Control | X — Not Adjustable |
| Cracking Pressure | C — 30 psi (2 bar) |
| Seal Material | N — Buna-N |
| Material / coating | Add /AP (stainless steel, passivated) or /LH (mild steel, zinc-nickel) to the end; no suffix is the standard finish. |
Control options
- X — Not Adjustable
- L — Standard Screw Adjustment
Cracking Pressure options
- A — 4 psi (0,3 bar)
- C — 30 psi (2 bar)
- B — 15 psi (1 bar)
- D — 50 psi (3,5 bar)
- E — 75 psi (5 bar)
- F — 100 psi (7 bar)
- G — 150 psi (10,5 bar)
- Z — 1 psi (0,07 bar)
Seal Material options
- N — Buna-N
- V — Viton
- E — EPDM
Material/coating options
- /AP — Stainless Steel, Passivated
- /LH — Mild Steel, Zinc-Nickel
- — Standard Material/Coating
Manifold & standard assemblies
Sun manifolds for cavity T-18A (102)
- LA2 Sun Hydraulics Ninety degree with gauge port Line mount manifoldCXJAXCN-LA2 — request assembly
- LA4 Sun Hydraulics Ninety degree with gauge port Line mount manifoldCXJAXCN-LA4 — request assembly
- LA5 Sun Hydraulics Ninety degree with gauge port Line mount manifoldCXJAXCN-LA5 — request assembly
- LA6 Sun Hydraulics Ninety degree with gauge port Line mount manifoldCXJAXCN-LA6 — request assembly
- LA7 Sun Hydraulics Ninety degree with gauge port Line mount manifoldCXJAXCN-LA7 — request assembly
- LA8 Sun Hydraulics Ninety degree with gauge port Line mount manifoldCXJAXCN-LA8 — request assembly
- LA9 Sun Hydraulics Ninety degree with gauge port Line mount manifoldCXJAXCN-LA9 — request assembly
- LAD Sun Hydraulics Ninety degree with gauge port Line mount manifoldCXJAXCN-LAD — request assembly
- LAE Sun Hydraulics Ninety degree with gauge port Line mount manifoldCXJAXCN-LAE — request assembly
- LAF Sun Hydraulics Ninety degree with gauge port Line mount manifoldCXJAXCN-LAF — request assembly
- LAL Sun Hydraulics Ninety degree with gauge port Line mount manifoldCXJAXCN-LAL — request assembly
- LAM Sun Hydraulics Ninety degree with gauge port Line mount manifoldCXJAXCN-LAM — request assembly
Technical features
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

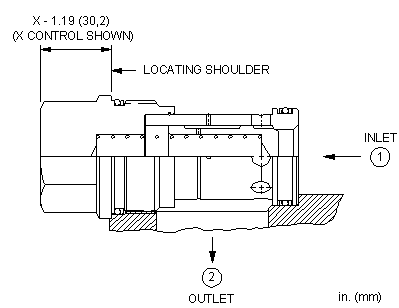

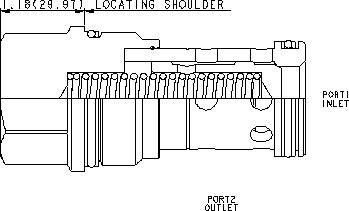

Drawings, symbol & performance curves
Downloads
Datasheet
Technical reference sheets
- 999-901-334 (PDF 344 KB)
- FloatingStyleScrewInCartridge2 (PDF 1 MB)
- TT_US_Cavity-New (PDF 522 KB)
- TT_US_check-flow1-New (PDF 537 KB)
CAD files
Frequently asked questions
Is CXJAXCN the same as CXJA-XCN?
Yes. Sun Hydraulics writes this part number as CXJAXCN. It is the model CXJA followed by the configuration code; hyphens, slashes and spaces are only dividers, so CXJAXCN, CXJA-XCN, CXJA XCN all refer to the same product.
Do you supply CXJAXCN in the UAE, GCC and India?
Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including CXJAXCN, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.
Can I get the datasheet and CAD files?
Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.
Direct acting or pilot operated - what do I use?
Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.
I need to discharge a large accumulator. How can I increase the capacity of my discharge circuit?
Because of the very high ratio, the COFO has limited capacity. The discharge path is across a .050 inch (1,3 mm) diameter orifice. If you have large accumulators combined with low precharge pressures, this may not discharge the energy quickly enough. Using the COFO XDN cartridge in conjunction with an LODA XDN will provide capacity for larger applications.
How big is a drop of hydraulic oil?
There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
What parts of the Sun cartridge valve are field serviceable?
Only external seals are serviceable. Sun offers replacement seal kits for all cartridge models. The applicable kit part number can be found in the product page's Technical Data table or by using our Cartridge Seal Kit search function located under Accessories. Please note: Converting the external seals from one material to another does not ensure fluid compatibility with that material due to the existence of internal seals within the cartridge.
