BVU – Sun Hydraulics Inline Line mount manifold
Part number: BVU · BVU/10 · BVU/11 · BVU/S · BVU/S3 · BVU/S4 · BVU/S5
Inline Line mount manifold, cavity T-2A, 3/8″ BSPP ports. Genuine Sun Hydraulics — MultiFlow is an authorized distributor.
BVU overview
BVU (BVU/10, BVU/11, BVU/S, BVU/S3) is a Sun Hydraulics Sun Hydraulics Inline Line mount manifold and installed in cavity T-2A. MultiFlow supplies genuine Sun Hydraulics manifolds in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| BVU | Aluminium, Buna-N seals6061-T651 Aluminum, Buna-N |
|---|---|
| BVU/10 | Black anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II |
| BVU/11 | Clear anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I |
| BVU/S | Ductile iron, dewatering-oil finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Dewatering Oil |
| BVU/S3 | Clear zinc plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer |
| BVU/S4 | Ductile iron, black oxide finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Chem. Black |
| BVU/S5 | Electroless nickel plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Electroless Nickel |
Specifications
| Body Type | Line mount |
|---|---|
| Interface | None |
| Body Features | Inline |
| Mounting Hole Diameter | .34 in. (8.6 mm) |
| Mounting Hole Depth | Through |
| Mounting Hole Quantity | 2 |
| Open Cavities | 1 |
| Cavity | T-2A |
| Port Size | 3/8" BSPP |
Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
How to read BVU
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so BVU, BVU/10, BVU/11, BVU/S, BVU/S3, BVU/S4, BVU/S5 are the same part.
| Model | BVU — Sun Hydraulics Inline Line mount manifold |
|---|---|
| Modifier | Add the modifier after the model, e.g. BVU/10 = black anodized aluminium. No modifier = standard material. |
Modifier options
- — 6061-T651 Aluminum, Buna-N
- /10 — 6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II
- /11 — 6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
- /S — 65-45-12 Ductile Iron, Buna-N, Dewatering Oil
- /S3 — 65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer
- /S4 — 65-45-12 Ductile Iron, Buna-N, Chem. Black
- /S5 — 65-45-12 Ductile Iron, Buna-N, Electroless Nickel
Cartridges that fit this manifold
Sun cartridges for cavity T-2A (102)
- CAEALHN Sun Hydraulics 3:1 pilot ratio, vented counterbalance valve – atmospherically referencedCAEALHN-BVU — request assembly
- CAEGLGN Sun Hydraulics 5:1 pilot ratio, vented counterbalance valve – atmospherically referencedCAEGLGN-BVU — request assembly
- CAEKLHN Sun Hydraulics 1:1 pilot ratio, vented counterbalance valve – atmospherically referencedCAEKLHN-BVU — request assembly
- CAELLGN Sun Hydraulics 2:1 pilot ratio, vented counterbalance valve – atmospherically referencedCAELLGN-BVU — request assembly
- CBDALHN Sun Hydraulics 3:1 pilot ratio, restrictive counterbalance valveCBDALHN-BVU — request assembly
- CBDAXNN Sun Hydraulics Fixed setting, 3:1 pilot ratio, restrictive counterbalance valveCBDAXNN-BVU — request assembly
- CBDBLHN Sun Hydraulics 1.5:1 pilot ratio, semi-restrictive counterbalance valveCBDBLHN-BVU — request assembly
- CBDBXNN Sun Hydraulics Fixed setting, 1.5:1 pilot ratio, semi-restrictive counterbalance valveCBDBXNN-BVU — request assembly
- CBDCLHN Sun Hydraulics 3:1 pilot ratio, semi-restrictive counterbalance valveCBDCLHN-BVU — request assembly
- CBDCXNN Sun Hydraulics Fixed setting, 3:1 pilot ratio, semi-restrictive counterbalance valveCBDCXNN-BVU — request assembly
- CBDDLJN Sun Hydraulics 4.5:1 pilot ratio, semi-restrictive counterbalance valveCBDDLJN-BVU — request assembly
- CBDDXXN Sun Hydraulics Fixed setting, 4.5:1 pilot ratio, semi-restrictive counterbalance valveCBDDXXN-BVU — request assembly
Ports
Modifiers Ports BVU, /10, /11 Ports 1 & 2: 3/8" BSPP; Port 3: 1/4" BSPP;

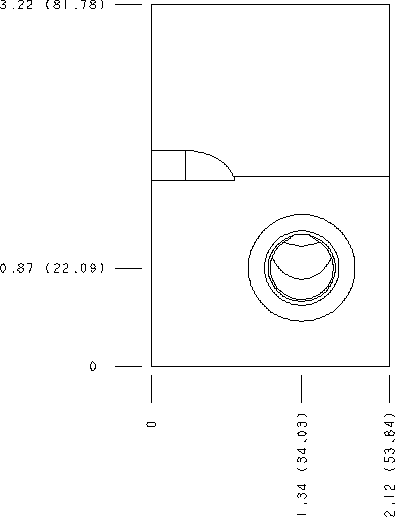

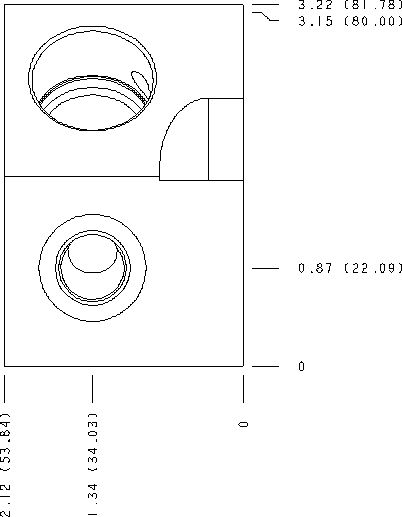

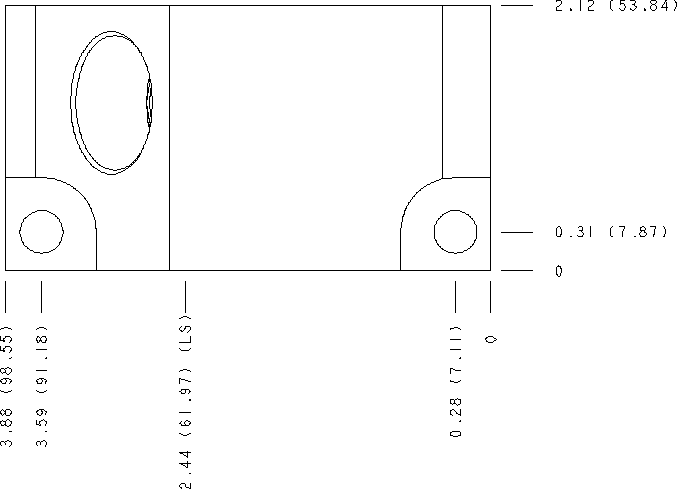

Drawings, symbol & performance curves
