JRK – Sun Hydraulics Ninety degree Line mount manifold, aluminium, Buna-N seals
Part number: JRK · JRK/10 · JRK/11 · JRK/S · JRK/S3 · JRK/S4 · JRK/S5
Ninety degree Line mount manifold, cavity SC-08-03, SAE 10 ports. Genuine Sun Hydraulics — MultiFlow is an authorized distributor.
JRK overview
JRK (JRK/10, JRK/11, JRK/S, JRK/S3) is a Sun Hydraulics Sun Hydraulics Ninety degree Line mount manifold and installed in cavity SC-08-03. MultiFlow supplies genuine Sun Hydraulics manifolds in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| JRK | Aluminium, Buna-N seals6061-T651 Aluminum, Buna-N |
|---|---|
| JRK/10 | Black anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II |
| JRK/11 | Clear anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I |
| JRK/S | Ductile iron, dewatering-oil finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Dewatering Oil |
| JRK/S3 | Clear zinc plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer |
| JRK/S4 | Ductile iron, black oxide finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Chem. Black |
| JRK/S5 | Electroless nickel plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Electroless Nickel |
Specifications
| Body Type | Line mount |
|---|---|
| Body Features | Ninety degree |
| Mounting Hole Diameter | .34 in. (8.6 mm) |
| Mounting Hole Quantity | 1 |
| Open Cavities | 1 |
| Cavity | SC-08-03 |
| Port Size | SAE 10 |
Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
How to read JRK
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so JRK, JRK/10, JRK/11, JRK/S, JRK/S3, JRK/S4, JRK/S5 are the same part.
| Model | JRK — Sun Hydraulics Ninety degree Line mount manifold |
|---|---|
| Modifier | Add the modifier after the model, e.g. JRK/10 = black anodized aluminium. No modifier = standard material. |
Modifier options
- — 6061-T651 Aluminum, Buna-N
- /10 — 6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II
- /11 — 6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
- /S — 65-45-12 Ductile Iron, Buna-N, Dewatering Oil
- /S3 — 65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer
- /S4 — 65-45-12 Ductile Iron, Buna-N, Chem. Black
- /S5 — 65-45-12 Ductile Iron, Buna-N, Electroless Nickel
Cartridges that fit this manifold
Sun cartridges for cavity SC-08-03 (3)
- CSTTXXN Sun Hydraulics Single ball shuttle valve, 3000 psi (210 bar) – common cavityCSTTXXN-JRK — request assembly
- DMTAXAN Sun Hydraulics 3-way, direct-acting, balanced spool, solenoid-operated directional valve, 3600 psi (250 bar) – common cavityDMTAXAN-JRK — request assembly
- PRTSXDN Sun Hydraulics Electro-proportional, direct-acting pressure reducing/relieving valve with filter screen, 3000 psi (210 bar) – common cavityPRTSXDN-JRK — request assembly
Ports
Modifiers Ports JRK, /10, /11, /S, /S3 All Ports: SAE 10;

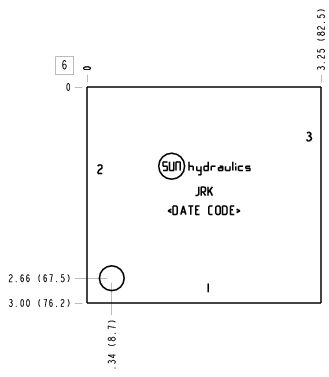

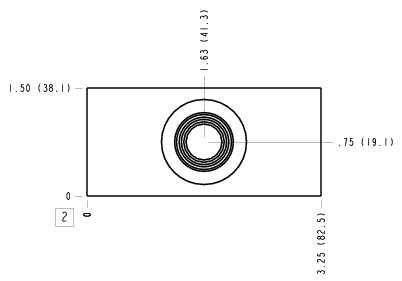

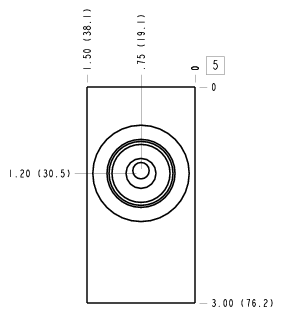

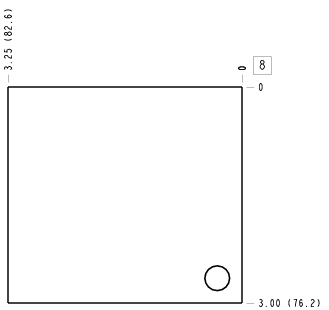

Drawings, symbol & performance curves
Downloads
Datasheet
CAD files (from Sun Hydraulics)
Frequently asked questions
Is JRK the same as JRK/10?
Yes. Sun Hydraulics writes this part number as JRK. It is the model JRK followed by the configuration code; hyphens, slashes and spaces are only dividers, so JRK, JRK/10, JRK/11, JRK/S, JRK/S3, JRK/S4, JRK/S5 all refer to the same product.
Do you supply JRK in the UAE, GCC and India?
Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including JRK, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.
Can I get the datasheet and CAD files?
Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.
Manufacturer reference: https://www.sunhydraulics.com/model/JRK
