DNDUXCN – Sun Hydraulics 4-way, 2-position, solenoid-operated directional blocking valve (740 Series), No coil
Roll over image to zoom in
Part number: DNDUXCN · DNDU-XCN · DNDU XCN
4-way, 2-position, solenoid-operated directional blocking valve (740 Series). Cavity T-31A, capacity 5 gpm (20 L/min.). Genuine Sun Hydraulics cartridge — MultiFlow is an authorized distributor.
DNDU-XCN overview
DNDUXCN (DNDU-XCN, DNDU XCN) is a Sun Hydraulics Sun Hydraulics 4-way, 2-position, solenoid-operated directional blocking valve (740 Series), rated 5 gpm (20 L/min.) and installed in cavity T-31A. MultiFlow supplies genuine Sun Hydraulics cartridges in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| DNDUXCN | No coilNo coil |
|---|---|
| DNDUXCN211 | DIN 43650-Form A, 115 VACDIN 43650-Form A, 115 VAC |
| DNDUXCN212 | DIN 43650-Form A, 12 VDCDIN 43650-Form A, 12 VDC |
| DNDUXCN212D | DIN 43650-Form A, 12 VDC, with transient voltage suppression (TVS) diodesDIN 43650-Form A, 12 VDC, with transient voltage suppression (TVS) diodes |
Specifications
| Cavity | T-31A |
|---|---|
| Series | 1 |
| Capacity | 5 gpm (20 L/min.) |
| Maximum Operating Pressure | 5000 psi (350 bar) |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 10 drops/min.@5000 psi (0,7 cc/min.@350 bar) |
| Manual Override Force Requirement | 7 + 3 lbf ft per 1000 psi @ Port 1 & Port 3 (9,5 + 4,0 Nm per 70 bar @ Port 1 & Port 3) |
| Manual Override Stroke | .06 in. (1,50 mm) |
| Response Time - Typical | 100 ms |
| Solenoid Tube Diameter | .63 in. (16 mm) |
| Valve Hex Size | 7/8 in. (22,2 mm) |
| Valve Installation Torque | 30 - 35 lbf ft (41 - 47 Nm) |
| Model Weight | .55 lb (0,25 kg) |
How to read DNDUXCN
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so DNDUXCN, DNDU-XCN, DNDU XCN are the same part.
| Model | DNDU — Sun Hydraulics 4-way, 2-position, solenoid-operated directional blocking valve (740 Series) |
|---|---|
| Control | X — No Manual Override |
| Poppet Configuration | C — Normally Closed |
| Seal Material | N — Buna-N |
| Material / coating | Add /AP (stainless steel, passivated) or /LH (mild steel, zinc-nickel) to the end; no suffix is the standard finish. |
Control options
- D — Twist/Lock (Dual) Manual Override
- L — Twist/Lock (Detent) Manual Override
- M — Manual Override
- T — Twist (Momentary) Manual Override
- X — No Manual Override
Poppet Configuration options
- C — Normally Closed
Seal Material options
- N — Buna-N
- V — Viton
Coil options
- — No coil
- 211 — DIN 43650-Form A, 115 VAC
- 212 — DIN 43650-Form A, 12 VDC
- 212D — DIN 43650-Form A, 12 VDC, with transient voltage suppression (TVS) diodes
- 212X01 — DIN 43650-Form A, 12 VDC, with XMD-01 driver
- 212X02 — DIN 43650-Form A, 12 VDC, with XMD-02 driver
- 214 — DIN 43650-Form A, 14 VDC
- 214D — DIN 43650-Form A, 14 VDC, with transient voltage suppression (TVS) diodes
- 214X01 — DIN 43650-Form A, 14 VDC, with XMD-01 driver
- 214X02 — DIN 43650-Form A, 14 VDC, with XMD-02 driver
- 223 — DIN 43650-Form A, 230 VAC
- 224 — DIN 43650-Form A, 24 VDC
- 224D — DIN 43650-Form A, 24 VDC, with transient voltage suppression (TVS) diodes
- 224X01 — DIN 43650-Form A, 24 VDC, with XMD-01 driver
- 224X02 — DIN 43650-Form A, 24 VDC, with XMD-02 driver
- 228 — DIN 43650-Form A, 28 VDC
- 228D — DIN 43650-Form A, 28 VDC, with transient voltage suppression (TVS) diodes
- 228X01 — DIN 43650-Form A, 28 VDC, with XMD-01 driver
- 228X02 — DIN 43650-Form A, 28 VDC, with XMD-02 driver
- 612 — AMP Junior Timer, 12 VDC
- 612D — AMP Junior Timer, 12 VDC, with transient voltage suppression (TVS) diodes
- 614 — AMP Junior Timer, 14 VDC
- 614D — AMP Junior Timer, 14 VDC, with transient voltage suppression (TVS) diodes
- 624 — AMP Junior Timer, 24 VDC
- 624D — AMP Junior Timer, 24 VDC, with transient voltage suppression (TVS) diodes
- 628 — AMP Junior Timer, 28 VDC
- 628D — AMP Junior Timer, 28 VDC, with transient voltage suppression (TVS) diodes
- 712 — Twin Lead, 12 VDC
- 712D — Twin Lead, 12 VDC, with transient voltage suppression (TVS) diodes
- 714 — Twin Lead, 14 VDC
- 714D — Twin Lead, 14 VDC, with transient voltage suppression (TVS) diodes
- 724 — Twin Lead, 24 VDC
- 724D — Twin Lead, 24 VDC, with transient voltage suppression (TVS) diodes
- 728 — Twin Lead, 28 VDC
- 728D — Twin Lead, 28 VDC, with transient voltage suppression (TVS) diodes
- 812 — Metri-Pack, 12 VDC
- 812D — Metri-Pack, 12 VDC, with transient voltage suppression (TVS) diodes
- 814 — Metri-Pack, 14 VDC
- 814D — Metri-Pack, 14 VDC, with transient voltage suppression (TVS) diodes
- 824 — Metri-Pack, 24 VDC
- 824D — Metri-Pack, 24 VDC, with transient voltage suppression (TVS) diodes
- 828 — Metri-Pack, 28 VDC
- 828D — Metri-Pack, 28 VDC, with transient voltage suppression (TVS) diodes
- 912 — Deutsch DT04-2P, 12 VDC
- 912D — Deutsch DT04-2P, 12 VDC, with transient voltage suppression (TVS) diodes
- 912X01 — Deutsch DT04-2P, 12 VDC, with XMD-01 driver
- 912X02 — Deutsch DT04-2P, 12 VDC, with XMD-02 driver
- 914 — Deutsch DT04-2P, 14 VDC
- 914D — Deutsch DT04-2P, 14 VDC, with transient voltage suppression (TVS) diodes
- 914X01 — Deutsch DT04-2P, 14 VDC, with XMD-01 driver
- 914X02 — Deutsch DT04-2P, 14 VDC, with XMD-02 driver
- 924 — Deutsch DT04-2P, 24 VDC
- 924D — Deutsch DT04-2P, 24 VDC, with transient voltage suppression (TVS) diodes
- 924X01 — Deutsch DT04-2P, 24 VDC, with XMD-01 driver
- 924X02 — Deutsch DT04-2P, 24 VDC, with XMD-02 driver
- 928 — Deutsch DT04-2P, 28 VDC
- 928D — Deutsch DT04-2P, 28 VDC, with transient voltage suppression (TVS) diodes
- 928X01 — Deutsch DT04-2P, 28 VDC, with XMD-01 driver
- 928X02 — Deutsch DT04-2P, 28 VDC, with XMD-02 driver
- JM11BD — Explosion Proof, Metric (M20 X 1.5), 115 VAC, 180 Degree, CSA and ATEX Certification
- JM11CD — Explosion Proof, Metric (M20 X 1.5), 115 VAC, 90 Degree, CSA and ATEX Certification
- JM12BD — Explosion Proof, Metric (M20 X 1.5), 12 VDC, 180 Degree, CSA and ATEX Certification
- JM12CD — Explosion Proof, Metric (M20 X 1.5), 12 VDC, 90 Degree, CSA and ATEX Certification
- JM23BD — Explosion Proof, Metric (M20 X 1.5), 230 VAC, 180 Degree, CSA and ATEX Certification
- JM23CD — Explosion Proof, Metric (M20 X 1.5), 230 VAC, 90 Degree, CSA and ATEX Certification
- JM24BD — Explosion Proof, Metric (M20 X 1.5), 24 VDC, 180 Degree, CSA and ATEX Certification
- JM24CD — Explosion Proof, Metric (M20 X 1.5), 24 VDC, 90 Degree, CSA and ATEX Certification
- JN11BD — Explosion Proof, 1/2 inch NPT mechanical conduit, 115 VAC, 180 Degree, CSA and ATEX Certification
- JN11CD — Explosion Proof, 1/2 inch NPT mechanical conduit, 115 VAC, 90 Degree, CSA and ATEX Certification
- JN12BD — Explosion Proof, 1/2 inch NPT mechanical conduit, 12 VDC, 180 Degree, CSA and ATEX Certification
- JN12CD — Explosion Proof, 1/2 inch NPT mechanical conduit, 12 VDC, 90 Degree, CSA and ATEX Certification
- JN23BD — Explosion Proof, 1/2 inch NPT mechanical conduit, 230 VAC, 180 Degree, CSA and ATEX Certification
- JN23CD — Explosion Proof, 1/2 inch NPT mechanical conduit, 230 VAC, 90 Degree, CSA and ATEX Certification
- JN24BD — Explosion Proof, 1/2 inch NPT mechanical conduit, 24 VDC, 180 Degree, CSA and ATEX Certification
- JN24CD — Explosion Proof, 1/2 inch NPT mechanical conduit, 24 VDC, 90 Degree, CSA and ATEX Certification
Manifold & standard assemblies
Sun manifolds for cavity T-31A (49)
- C7A Sun Hydraulics Ninety degree Line mount manifoldDNDUXCN-C7A — request assembly
- C7B Sun Hydraulics Ninety degree Line mount manifoldDNDUXCN-C7B — request assembly
- C7C Sun Hydraulics Ninety degree Line mount manifoldDNDUXCN-C7C — request assembly
- C7I Sun Hydraulics Ninety degree Line mount manifoldDNDUXCN-C7I — request assembly
- C7J Sun Hydraulics Ninety degree Line mount manifoldDNDUXCN-C7J — request assembly
- C7K Sun Hydraulics Ninety degree Line mount manifoldDNDUXCN-C7K — request assembly
- C7T Sun Hydraulics Ninety degree Line mount manifoldDNDUXCN-C7T — request assembly
- C7U Sun Hydraulics Ninety degree Line mount manifoldDNDUXCN-C7U — request assembly
- C7V Sun Hydraulics Ninety degree Line mount manifoldDNDUXCN-C7V — request assembly
- C8A Sun Hydraulics Ninety degree, accepts standard and weatherized coils Line mount manifoldDNDUXCN-C8A — request assembly
- C8B Sun Hydraulics Ninety degree, accepts standard and weatherized coils Line mount manifoldDNDUXCN-C8B — request assembly
- C8C Sun Hydraulics Ninety degree, accepts standard and weatherized coils Line mount manifoldDNDUXCN-C8C — request assembly
Technical features
- The solenoid tube assembly is fatigue rated for 5000 psi (350 bar) service.
- This valve is direct actuated and requires no minimum hydraulic pressure for operation.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- This cartridge has an option for manual override. See the CONFIGURATION section.
- On models equipped with the D or L control, the detent mechanism in the manual override is meant for temporary actuation. The D, L and T manual control assemblies have a mechanical life expectancy of approximately 7,000 cycles.
- This valve utilizes a wet armature design. This means that the working fluid surrounds the armature and is exposed to the heat generated by the coil. This can be a factor if the coil is energized for long periods of time. Some fluids, notably water/glycol mixtures, break down at these temperatures over time and form varnishes that will affect the function of the cartridge.
- A wide variety of coil termination and voltage options are available, with and without surge protection. See the CONFIGURATION section.
- The solenoid's unique magnetic design results in a high efficiency solenoid, yielding high spool actuating force per Watt expended, leading to reliable valve shifting.
- Coils can be mounted on the tube in either direction.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

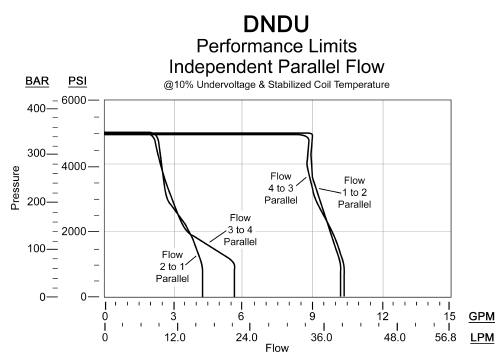

Drawings, symbol & performance curves
Downloads
Datasheet
Technical reference sheets
- 999-901-334 (PDF 344 KB)
- FloatingStyleScrewInCartridge2 (PDF 1 MB)
- TT_US_Cavity-New (PDF 522 KB)
- TT_US_Solenoid-Review1-New (PDF 1 MB)
- TT_US_coils-New (PDF 975 KB)
CAD files
Frequently asked questions
Is DNDUXCN the same as DNDU-XCN?
Yes. Sun Hydraulics writes this part number as DNDUXCN. It is the model DNDU followed by the configuration code; hyphens, slashes and spaces are only dividers, so DNDUXCN, DNDU-XCN, DNDU XCN all refer to the same product.
Do you supply DNDUXCN in the UAE, GCC and India?
Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including DNDUXCN, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.
Can I get the datasheet and CAD files?
Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.
How big is a drop of hydraulic oil?
There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
Direct acting or pilot operated - what do I use?
Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.
What parts of the Sun cartridge valve are field serviceable?
Only external seals are serviceable. Sun offers replacement seal kits for all cartridge models. The applicable kit part number can be found in the product page's Technical Data table or by using our Cartridge Seal Kit search function located under Accessories. Please note: Converting the external seals from one material to another does not ensure fluid compatibility with that material due to the existence of internal seals within the cartridge.
Manufacturer reference: https://www.sunhydraulics.com/model/DNDU
