DNDASNN – Sun Hydraulics 4-way, 2-position, soft shift, solenoid-operated directional spool valve, No coil

DNDAS-NN Sun Hydraulics 4-way Valve – installation dimensions drawing, cavity T-31A
DNDAS-NN Sun Hydraulics 4-way Valve – hydraulic schematic symbol
DNDAS-NN Sun Hydraulics 4-way Valve – hydraulic schematic symbol
DNDAS-NN Sun Hydraulics 4-way Valve – hydraulic schematic symbol
DNDAS-NN Sun Hydraulics 4-way Valve – hydraulic schematic symbol
DNDAS-NN Sun Hydraulics 4-way Valve – hydraulic schematic symbol
DNDAS-NN Sun Hydraulics 4-way Valve – hydraulic schematic symbol
DNDAS-NN Sun Hydraulics 4-way Valve – hydraulic schematic symbol
DNDAS-NN Sun Hydraulics 4-way Valve – hydraulic schematic symbol
DNDAS-NN Sun Hydraulics 4-way Valve – hydraulic schematic symbol
DNDAS-NN Sun Hydraulics 4-way Valve – hydraulic schematic symbol
DNDAS-NN Sun Hydraulics 4-way Valve – performance curve (pressure drop vs flow)
DNDAS-NN Sun Hydraulics 4-way Valve – performance curve (pressure drop vs flow)
DNDAS-NN Sun Hydraulics 4-way Valve – performance curve (pressure drop vs flow)
Roll over image to zoom in
Click to open expanded view

Part number: DNDASNN · DNDAS-NN · DNDAS NN

Brand Sun HydraulicsType 4-wayCapacity 4 gpm (15 L/min.)Cavity T-31A

4-way, 2-position, soft shift, solenoid-operated directional spool valve. Cavity T-31A, capacity 4 gpm (15 L/min.). Genuine Sun Hydraulics cartridge — MultiFlow is an authorized distributor.

Clear
SKU: DNDAS Category: Brand:

DNDAS-NN overview

DNDASNN (DNDAS-NN, DNDAS NN) is a Sun Hydraulics Sun Hydraulics 4-way, 2-position, soft shift, solenoid-operated directional spool valve, rated 4 gpm (15 L/min.) and installed in cavity T-31A. MultiFlow supplies genuine Sun Hydraulics cartridges in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.

Ordering codes

Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.

DNDASNN No coilNo coil
DNDASNN211 DIN 43650-Form A, 115 VACDIN 43650-Form A, 115 VAC
DNDASNN212 DIN 43650-Form A, 12 VDCDIN 43650-Form A, 12 VDC
DNDASNN212N DIN 43650-Form A, 12 VDC, no transient voltage suppression (TVS) diodesDIN 43650-Form A, 12 VDC, no transient voltage suppression (TVS) diodes

Specifications

CavityT-31A
Series1
Capacity4 gpm (15 L/min.)
Maximum Operating Pressure5000 psi (350 bar)
Maximum Valve Leakage at 110 SUS (24 cSt)10 in³/min.@3000 psi (160 cc/min.@210 bar)
Manual Override Force Requirement5 lbs/1000 psi @ Port 1 (33 N/100 bar @ Port 1)
Manual Override Stroke.10 in. (2,5 mm)
Solenoid Tube Diameter.75 in. (19 mm)
Valve Hex Size7/8 in. (22,2 mm)
Valve Installation Torque30 - 35 lbf ft (41 - 47 Nm)
Model Weight.60 lb (0,30 kg)
Seal kit - CartridgeViton: 990431006

Please verify cartridge clearance requirements when choosing a Sun manifold. Different valve controls and coils require different clearances. An additional 2.00 inches (50,8 mm) beyond the valve extension is needed for coil installation and removal.

How to read DNDASNN

Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so DNDASNN, DNDAS-NN, DNDAS NN are the same part.

ModelDNDAS — Sun Hydraulics 4-way, 2-position, soft shift, solenoid-operated directional spool valve
Spool ConfigurationN — Through, Shift to Cross
Seal MaterialN — Buna-N
Material / coatingAdd /AP (stainless steel, passivated) or /LH (mild steel, zinc-nickel) to the end; no suffix is the standard finish.
Spool Configuration options
  • C — Closed, Shift to Through
  • D — Closed, Shift to Cross
  • E — Cross, Shift to Closed
  • H — Open, Shift to Cross
  • N — Through, Shift to Cross
  • L — Cross, Shift to P to A, B and T Blocked
  • R — Regen, Shift to Cross
  • T — Tandem, Shift to Through
  • U — Through, Shift to Tandem
  • Y — Motor, Shift to Cross
Seal Material options
  • N — Buna-N
  • V — Viton
  • E — EPDM
Coil options
  • — No coil
  • 211 — DIN 43650-Form A, 115 VAC
  • 212 — DIN 43650-Form A, 12 VDC
  • 212N — DIN 43650-Form A, 12 VDC, no transient voltage suppression (TVS) diodes
  • 214 — DIN 43650-Form A, 14 VDC
  • 214N — DIN 43650-Form A, 14 VDC, no transient voltage suppression (TVS) diodes
  • 223 — DIN 43650-Form A, 230 VAC
  • 224 — DIN 43650-Form A, 24 VDC
  • 224N — DIN 43650-Form A, 24 VDC, no transient voltage suppression (TVS) diodes
  • 228 — DIN 43650-Form A, 28 VDC
  • 2E12V — DIN 43650-Form A, programmable via IR link coil/power saver, 12 VDC
  • 2E24V — DIN 43650-Form A, programmable via IR link coil/power saver, 24 VDC
  • 4E12V — Deutsch DT04-6P, programmable via IR link coil/power saver, 12 VDC
  • 4E24V — Deutsch DT04-6P, programmable via IR link coil/power saver, 24 VDC
  • 812 — Metri-Pack, 12 VDC
  • 912 — Deutsch DT04-2P, 12 VDC
  • 912N — Deutsch DT04-2P, 12 VDC, no transient voltage suppression (TVS) diodes
  • 914 — Deutsch DT04-2P, 14 VDC
  • 914N — Deutsch DT04-2P, 14 VDC, no transient voltage suppression (TVS) diodes
  • 924 — Deutsch DT04-2P, 24 VDC
  • 924N — Deutsch DT04-2P, 24 VDC, no transient voltage suppression (TVS) diodes
  • 928 — Deutsch DT04-2P, 28 VDC
  • HN24AA — Explosion Proof, 1/2 inch NPT mechanical conduit, 24 VDC, 10 feet twin lead, ATEX Certification Ex mb IIC T3 Gb.
  • HN24AB — Explosion Proof, 1/2 inch NPT mechanical conduit, 24 VDC, 10 feet twin lead, CSA Certification

Manifold & standard assemblies

Sun manifolds for cavity T-31A (49)

View all 49 →

Technical features

  • The soft shift cartridge is interchangeable with the standard cartridge, however, the performance limits are lower.
  • The soft shift feature can reduce shock due to valve actuation but should not be counted upon in applications where timing is critical. If you need accurate ramping or timing control, consider Sun's electro-proportional valves.
  • The soft shift feature results in an increase in response time over Sun's standard solenoid. Response time is dependent on flow, pressure, coil voltage, oil viscosity and ambient temperature.
  • For consistent soft shift performance, port 1 should be at a positive pressure.
  • This valve includes a push-type manual override control. Other manual control options such as T or D, cannot be ordered with the soft shift control but can be installed easily in the field. See Twist/Lock Manual Override link above for details. Please note: Manual override functionality is not compatible with weatherized coils.
  • The solenoid tube assembly is fatigue rated for 5000 psi (350 bar) service.
  • Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
  • This valve utilizes a wet armature design. This means that the working fluid surrounds the armature and is exposed to the heat generated by the coil. This can be a factor if the coil is energized for long periods of time. Some fluids, notably water/glycol mixtures, break down at these temperatures over time and form varnishes that will affect the function of the cartridge.
  • The solenoid's unique magnetic design results in a high efficiency solenoid, yielding high spool actuating force per Watt expended, leading to reliable valve shifting.
  • Coil connector options offer ratings up to IP69K. See individual coil product pages for details. Additional weatherized coils and kits are available for more complete environmental protection.
  • Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

Drawings, symbol & performance curves

DNDAS-NN Sun Hydraulics 4-way Valve – hydraulic schematic symbol
hydraulic schematic symbol
DNDAS-NN Sun Hydraulics 4-way Valve – hydraulic schematic symbol
hydraulic schematic symbol
DNDAS-NN Sun Hydraulics 4-way Valve – hydraulic schematic symbol
hydraulic schematic symbol
DNDAS-NN Sun Hydraulics 4-way Valve – hydraulic schematic symbol
hydraulic schematic symbol
DNDAS-NN Sun Hydraulics 4-way Valve – hydraulic schematic symbol
hydraulic schematic symbol
DNDAS-NN Sun Hydraulics 4-way Valve – hydraulic schematic symbol
hydraulic schematic symbol
DNDAS-NN Sun Hydraulics 4-way Valve – hydraulic schematic symbol
hydraulic schematic symbol
DNDAS-NN Sun Hydraulics 4-way Valve – hydraulic schematic symbol
hydraulic schematic symbol
DNDAS-NN Sun Hydraulics 4-way Valve – hydraulic schematic symbol
hydraulic schematic symbol
DNDAS-NN Sun Hydraulics 4-way Valve – hydraulic schematic symbol
hydraulic schematic symbol

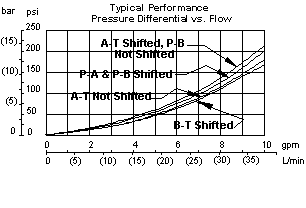

DNDAS-NN Sun Hydraulics 4-way Valve – performance curve (pressure drop vs flow)
performance curve (pressure drop vs flow)

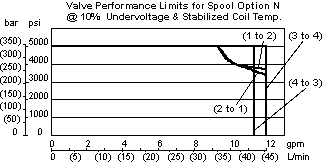

DNDAS-NN Sun Hydraulics 4-way Valve – performance curve (pressure drop vs flow)
performance curve (pressure drop vs flow)
DNDAS-NN Sun Hydraulics 4-way Valve – performance curve (pressure drop vs flow)
performance curve (pressure drop vs flow)

Downloads

Datasheet

Technical reference sheets

CAD files

Frequently asked questions

Is DNDASNN the same as DNDAS-NN?

Yes. Sun Hydraulics writes this part number as DNDASNN. It is the model DNDAS followed by the configuration code; hyphens, slashes and spaces are only dividers, so DNDASNN, DNDAS-NN, DNDAS NN all refer to the same product.

Do you supply DNDASNN in the UAE, GCC and India?

Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including DNDASNN, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.

Can I get the datasheet and CAD files?

Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.

How big is a drop of hydraulic oil?

There are exactly 250 Sun drops in a cubic inch or 15 in a cc.

Direct acting or pilot operated - what do I use?

Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.

What parts of the Sun cartridge valve are field serviceable?
Only external seals are serviceable.  Sun offers replacement seal kits for all cartridge models. The applicable kit part number can be found in the product page's Technical Data table or by using our Cartridge Seal Kit search function located under Accessories. Please note: Converting the external seals from one material to another does not ensure fluid compatibility with that material due to the existence of internal seals within the cartridge.

Manufacturer reference: https://www.sunhydraulics.com/model/DNDAS
