DAAPFCN – Sun Hydraulics 2-way, air-operated, spool directional valve - pilot capacity, Standard Material/Coating
Part number: DAAPFCN · DAAP-FCN · DAAP FCN
2-way, air-operated, spool directional valve – pilot capacity. Cavity T-8A, capacity .25 gpm (1 L/min.). Genuine Sun Hydraulics cartridge — MultiFlow is an authorized distributor.
DAAP-FCN overview
DAAPFCN (DAAP-FCN, DAAP FCN) is a Sun Hydraulics Sun Hydraulics 2-way, air-operated, spool directional valve - pilot capacity, rated .25 gpm (1 L/min.) and installed in cavity T-8A. MultiFlow supplies genuine Sun Hydraulics cartridges in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| DAAPFCN/AP | Stainless Steel, PassivatedStainless Steel, Passivated |
|---|---|
| DAAPFCN | Standard Material/CoatingStandard Material/Coating |
Specifications
| Cavity | T-8A |
|---|---|
| Series | P |
| Capacity | .25 gpm (1 L/min.) |
| Maximum Operating Pressure | 5000 psi (350 bar) |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 10 drops/min.@5000 psi (0,7 cc/min.@350 bar) |
| Minimum Pilot Pressure to Operate | See Technical Features |
| Pilot Control Port | See Control Options |
| Valve Hex Size | 7/8 in. (22,2 mm) |
| Valve Installation Torque | 20 - 25 lbf ft (27 - 33 Nm) |
| Seal kit - Cartridge | Viton: 990508006 |
How to read DAAPFCN
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so DAAPFCN, DAAP-FCN, DAAP FCN are the same part.
| Model | DAAP — Sun Hydraulics 2-way, air-operated, spool directional valve - pilot capacity |
|---|---|
| Control | F — External 1/8 NPTF Port |
| Spool Configuration | C — Normally Closed |
| Seal Material | N — Buna-N |
| Material / coating | Add /AP (stainless steel, passivated) or /LH (mild steel, zinc-nickel) to the end; no suffix is the standard finish. |
Control options
- E — External 4-SAE Port
- F — External 1/8 NPTF Port
- P — External 1/8 BSPP Port
Spool Configuration options
- C — Normally Closed
- H — Normally Open
Seal Material options
- N — Buna-N
- V — Viton
- E — EPDM
Material/coating options
- /AP — Stainless Steel, Passivated
- — Standard Material/Coating
Manifold & standard assemblies
Sun manifolds for cavity T-8A (9)
- ADJ Sun Hydraulics Reducer/reliever on P2 Line mount manifoldDAAPFCN-ADJ — request assembly
- ADP Sun Hydraulics Reducer/reliever on P2 Line mount manifoldDAAPFCN-ADP — request assembly
- U5T Sun Hydraulics Ninety degree, accepts standard and weatherized coils Line mount manifoldDAAPFCN-U5T — request assembly
- WFL Sun Hydraulics Ninety degree Line mount manifoldDAAPFCN-WFL — request assembly
- WFM Sun Hydraulics Ninety degree Line mount manifoldDAAPFCN-WFM — request assembly
- WFN Sun Hydraulics Ninety degree Line mount manifoldDAAPFCN-WFN — request assembly
- WFO Sun Hydraulics Ninety degree Line mount manifoldDAAPFCN-WFO — request assembly
- WFP Sun Hydraulics Ninety degree Line mount manifoldDAAPFCN-WFP — request assembly
- WFQ Sun Hydraulics Ninety degree Line mount manifoldDAAPFCN-WFQ — request assembly
Technical features
- Utilizes the Sun T-8A 2-port cavity making it the ideal choice to use in conjunction with Sun's main stage pilot or vent-to-operate cartridges. Separate pilot lines are eliminated and only one cavity needs to be machined to accommodate both the control and primary function. Note: All 2-position, 2-way pilot stage control cartridges utilize the same cavity and are physically interchangeable. Functionality is the only consideration.
- Note: The main stage valve should first be installed to the correct torque value followed by the T-8A pilot control section into the main stage valve to its required torque value.
- The preferred flow path through the valve is port 2 to port 1.
- Different pilot control port options are available. See Option Selection for details.
- Hardened spool and sleeve provide consistent operation, low spool leakage rates and superior wear characteristics.
- The minimum pilot pressure required to operate the valve is determined by the following formula: pilot pressure = 20 psi + pressure @ Port 1 divided by 100. This results in a pilot pressure range of 20 to 70 psi. In metric; pilot pressure = 1,4 bar + pressure @ Port 1 divided by 100. This results in a pilot pressure of 1,4 to 5 bar.
- All ports will accept 5000 psi (350 bar) with the exception of the pilot port which accepts 500 psi (35 bar) max.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

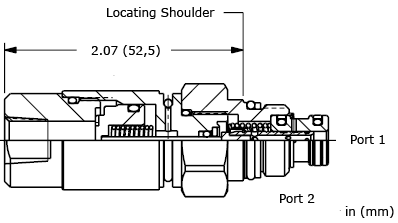

Drawings, symbol & performance curves
Downloads
Datasheet
Technical reference sheets
CAD files
Frequently asked questions
Is DAAPFCN the same as DAAP-FCN?
Yes. Sun Hydraulics writes this part number as DAAPFCN. It is the model DAAP followed by the configuration code; hyphens, slashes and spaces are only dividers, so DAAPFCN, DAAP-FCN, DAAP FCN all refer to the same product.
Do you supply DAAPFCN in the UAE, GCC and India?
Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including DAAPFCN, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.
Can I get the datasheet and CAD files?
Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.
Direct acting or pilot operated - what do I use?
Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.
How big is a drop of hydraulic oil?
There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
What parts of the Sun cartridge valve are field serviceable?
Manufacturer reference: https://www.sunhydraulics.com/model/DAAP
