CNDCXCN – Sun Hydraulics Free flow nose to side check valve with bypass orifice, Standard Material/Coating
Part number: CNDCXCN · CNDC-XCN · CNDC XCN
Free flow nose to side check valve with bypass orifice. Cavity T-13A, capacity 15 gpm (60 L/min.). Genuine Sun Hydraulics cartridge — MultiFlow is an authorized distributor.
CNDC-XCN overview
CNDCXCN (CNDC-XCN, CNDC XCN) is a Sun Hydraulics Sun Hydraulics Free flow nose to side check valve with bypass orifice, rated 15 gpm (60 L/min.) and installed in cavity T-13A. MultiFlow supplies genuine Sun Hydraulics cartridges in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| CNDCXCN/AP | Stainless Steel, PassivatedStainless Steel, Passivated |
|---|---|
| CNDCXCN/LH | Mild Steel, Zinc-NickelMild Steel, Zinc-Nickel |
| CNDCXCN | Standard Material/CoatingStandard Material/Coating |
Specifications
| Cavity | T-13A |
|---|---|
| Series | 1 |
| Capacity | 15 gpm (60 L/min.) |
| Maximum Operating Pressure | 5000 psi (350 bar) |
| Orifice Range | .016 - .107 in. (0,4 - 2,7 mm) |
| Valve Hex Size | 7/8 in. (22,2 mm) |
| Valve Installation Torque | 30 - 35 lbf ft (41 - 47 Nm) |
| Seal kit - Cartridge | Viton: 990010006 |
How to read CNDCXCN
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so CNDCXCN, CNDC-XCN, CNDC XCN are the same part.
| Model | CNDC — Sun Hydraulics Free flow nose to side check valve with bypass orifice |
|---|---|
| Control | X — Not Adjustable |
| Setting Range | C — 30 psi (2 bar) Cracking Pressure, .016 - .107 in. (0,4 - 2,7 mm) |
| Seal Material | N — Buna-N |
| Material / coating | Add /AP (stainless steel, passivated) or /LH (mild steel, zinc-nickel) to the end; no suffix is the standard finish. |
Control options
- L — Manual Load Release
- X — Not Adjustable
Setting Range options
- A — 4 psi (0,3 bar) Cracking Pressure, .016 - .107 in. (0,4 - 2,7 mm)
- B — 15 psi (1 bar) Cracking Pressure, .016 - .107 in. (0,4 - 2,7 mm)
- C — 30 psi (2 bar) Cracking Pressure, .016 - .107 in. (0,4 - 2,7 mm)
- D — 50 psi (3,5 bar) Cracking Pressure, .016 - .107 in. (0,4 - 2,7 mm)
- E — 75 psi (5 bar) Cracking Pressure, .016 - .107 in. (0,4 - 2,7 mm)
- F — 100 psi (7 bar) Cracking Pressure, .016 - .107 in. (0,4 - 2,7 mm)
- Z — 1 psi (0,07 bar) Cracking Pressure, .016 - .107 in. (0,4 - 2,7 mm)
Seal Material options
- N — Buna-N
- V — Viton
Material/coating options
- /AP — Stainless Steel, Passivated
- /LH — Mild Steel, Zinc-Nickel
- — Standard Material/Coating
Manifold & standard assemblies
Sun manifolds for cavity T-13A (155)
- A3C Sun Hydraulics Ninety degree, accepts standard and weatherized coils Line mount manifoldCNDCXCN-A3C — request assembly
- A3D Sun Hydraulics Ninety degree, accepts standard and weatherized coils Line mount manifoldCNDCXCN-A3D — request assembly
- A3K Sun Hydraulics Ninety degree, accepts standard and weatherized coils Line mount manifoldCNDCXCN-A3K — request assembly
- A3L Sun Hydraulics Ninety degree, accepts standard and weatherized coils Line mount manifoldCNDCXCN-A3L — request assembly
- A3V Sun Hydraulics Ninety degree, accepts standard and weatherized coils Line mount manifoldCNDCXCN-A3V — request assembly
- A3W Sun Hydraulics Ninety degree, accepts standard and weatherized coils Line mount manifoldCNDCXCN-A3W — request assembly
- A4A Sun Hydraulics Dual cavity, accepts standard and weatherized coils Line mount manifoldCNDCXCN-A4A — request assembly
- A4B Sun Hydraulics Dual cavity, accepts standard and weatherized coils Line mount manifoldCNDCXCN-A4B — request assembly
- A4H Sun Hydraulics Dual cavity, accepts standard and weatherized coils Line mount manifoldCNDCXCN-A4H — request assembly
- A4I Sun Hydraulics Dual cavity, accepts standard and weatherized coils Line mount manifoldCNDCXCN-A4I — request assembly
- A4J Sun Hydraulics Dual cavity, accepts standard and weatherized coils Line mount manifoldCNDCXCN-A4J — request assembly
- A4T Sun Hydraulics Dual cavity, accepts standard and weatherized coils Line mount manifoldCNDCXCN-A4T — request assembly
Technical features
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Valves with the opposite flow path (free flow from 2 to 1) are considered flow controls and may be found listed as fixed orifice, non-pressure compensated flow control valve with reverse flow check.
- The customer specified orifice diameter is stamped on one of the cartridge's hex faces.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

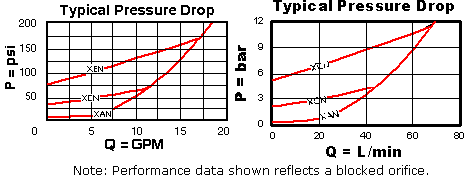

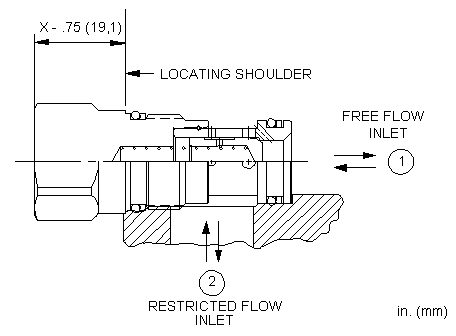

Drawings, symbol & performance curves
Downloads
Datasheet
Technical reference sheets
- 999-901-334 (PDF 344 KB)
- FloatingStyleScrewInCartridge2 (PDF 1 MB)
- TT_US_Cavity-New (PDF 522 KB)
- TT_US_check-flow1-New (PDF 537 KB)
CAD files
Frequently asked questions
Is CNDCXCN the same as CNDC-XCN?
Yes. Sun Hydraulics writes this part number as CNDCXCN. It is the model CNDC followed by the configuration code; hyphens, slashes and spaces are only dividers, so CNDCXCN, CNDC-XCN, CNDC XCN all refer to the same product.
Do you supply CNDCXCN in the UAE, GCC and India?
Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including CNDCXCN, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.
Can I get the datasheet and CAD files?
Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.
How big is a drop of hydraulic oil?
There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
Direct acting or pilot operated - what do I use?
Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.
I need to discharge a large accumulator. How can I increase the capacity of my discharge circuit?
Because of the very high ratio, the COFO has limited capacity. The discharge path is across a .050 inch (1,3 mm) diameter orifice. If you have large accumulators combined with low precharge pressures, this may not discharge the energy quickly enough. Using the COFO XDN cartridge in conjunction with an LODA XDN will provide capacity for larger applications.
What parts of the Sun cartridge valve are field serviceable?
Manufacturer reference: https://www.sunhydraulics.com/model/CNDC
